Dear Hello! First prior statement!We are committed to the use of all products all copper foot power design If the discovery is not a commitment to pay ten!!!

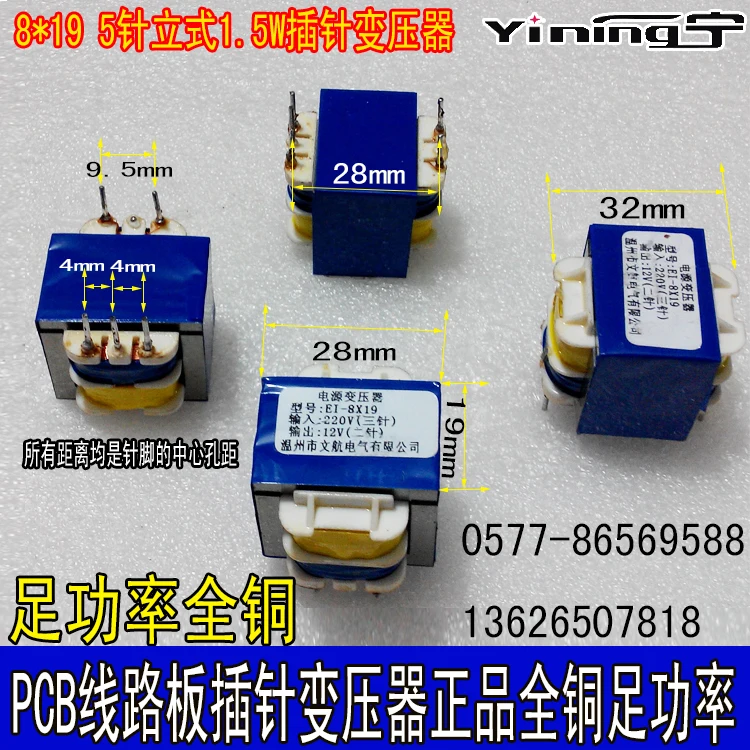

Pin transformerWidely used! for examplePCBCircuit board soya bean milk machine research and development production design lampblack machine refrigerator already has some electronic electrical equipment power from small to large size8*12 8*14 10*15 10*20 13*20 13*22 16*20 8*15 13*17 16*25Can be customized and more than a set of voltage sharing of the zero line can be separated independently all dimensions are marked on the main map
Introduction of series products of needle transformer:
Specifications power The number of needle/first/Secondary needle distance/Row spacing(mm)Exterior dimension(mm)Voltage
EI28*12Stand0.5-1W 2+3P/10/5+5/20 28*27*25 6V/9V/12V/15V/18V/24VSingle and double group
EI28*12Stand0.5-1W 2+3P/14.8/7.4+7.4/15 28*20*25 6V/9V/12V/15V/18V/24VSingle and double groupEI28*12Wo0.5-1W 5+5P/5+5+5+5/5+5+5+5/20 28*25*23.5 6V/9V/12V/15V/18V/24VSingle and double group
EI28*14Stand1-1.5W 2+3P/14/7+7/22 28*26*25 6V/9V/12V/15V/18V/24VSingle and double group
EI28*15Stand1-1.5W 2+3P/10/5+5/20 28*25*25 6V/9V/12V/15V/18V/24VSingle and double group
EI28*16Wo1.5W 3+4P/7+7/5+10+5/20 28*25*27 6V/9V/12V/15V/18V/24VSingle and double group
EI28*17Wo1.5-2W 5+5P/5+5+5+5/5+5+5+5/20 28*25*29 6V/9V/12V/15V/18V/24VSingle and double group
EI28*19Stand2W 3+3P/5+5/5+5/29 28*32*25 6V/9V/12V/15V/18V/24VSingle and double group
EI35*10Wo1-1.5W 5+5P//5+5+5+5/5+5+5+5/21.2 35*30*23 6V/9V/12V/15V/18V/24VSingle and double group
EI35*12Wo1-1.5W 3+3P/8.5+8.5/8.5+8.5/22 35*30*28 6V/9V/12V/15V/18V/24VSingle and double group
EI35*15Stand2W 2+3P/15/7.5+7.5/22 35*29*30 6V/9V/12V/15V/18V/24VSingle and double group
EI35*15Wo2W 3+5P/9.5+9.5/4.75*4/21 35*31*30 6V/9V/12V/15V/18V/24VSingle and double group
EI35*16Wo2W 3+5P/9.5+9.5/4.75*4/20 35*30*28 6V/9V/12V/15V/18V/24VSingle and double group
EI35*16Wo2W 5+5P/5+5+5+5/5+5+5+5/20 35*30*31 6V/9V/12V/15V/18V/24VSingle and double group
EI35*18Wo2.5W 3+5P/10+10/5+5+5+5/21.6 35*30*32 6V/9V/12V/15V/18V/24VSingle and double group
EI35*20Stand2.5-3W 3+3P/7+7/7+7/28 35*37*30 6V/9V/12V/15V/18V/24VSingle and double group
EI41*12Wo2-3W 5+5P/5+5+5+5/5+5+5+5/23 41*33*25 6V/9V/12V/15V/18V/24VSingle and double group
EI41*17Stand3W 2+3P/21/10.5+10.5/17.8 41*24*33 6V/9V/12V/15V/18V/24VSingle and double group
EI41*17Wo3W 2+4P/14.2/7.2+7.2+7.2/22.5 41*33*31 6V/9V/12V/15V/18V/24VSingle and double group
EI41*! 7Wo3W 4+5P/7.4*3/5+6.2+6.2+5/23 41*33*36.5 6V/9V/12V/15V/18V/24VSingle and double group
EI41*17Wo3W 4+5P/7.2*3/5+7+7+5/22.5 41*33*31 6V/9V/12V/15V/18V/24VSingle and double group
EI41*17Wo3W 5+5P/5+5+5+5/5+5+5+5/22 41*33*40 6V/9V/12V/15V/18V/24VSingle and double group
EI41*20Wo5W 5+5P/4.5*4/4.5*4/24 41*33*32.5 6V/9V/12V/15V/18V/24VSingle and double group
EI41*20Wo5W 5+5P/5+5+5+5/5+5+5+5/27 41*33*33.5 6V/9V/12V/15V/18V/24VSingle and double group
EI41*20Stand5W 2+3P/18.5/9.3+9.3/29 41*35*33 6V/9V/12V/15V/18V/24VSingle and double group
EI41*22Wo5-6W 4+5P/7.3*3/4.8+7.3+7.3+4.8/23 41*33*40 6V/9V/12V/15V/18V/24VSingle and double group
EI48*20Wo8W 6+6P/5*5/5*5/27.2 48*40*36.8 6V/9V/12V/15V/18V/24VSingle and double group
EI48*20Wo8W 4+5P/7+14+7/7+7+7+7/28 48*40*36 6V/9V/12V/15V/18V/24VSingle and double group
EI48*24Wo10W 8+8P/5*7/5*7/29 48*40*40.2 6V/9V/12V/15V/18V/24VSingle and double group
Custom voltage!!
