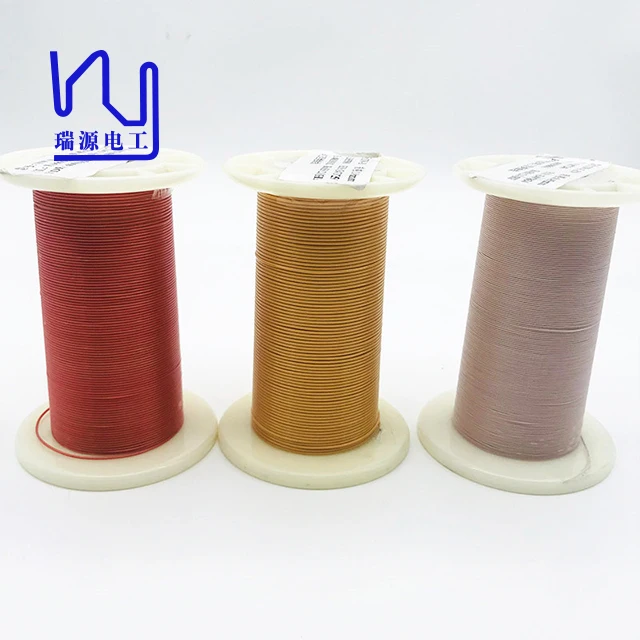

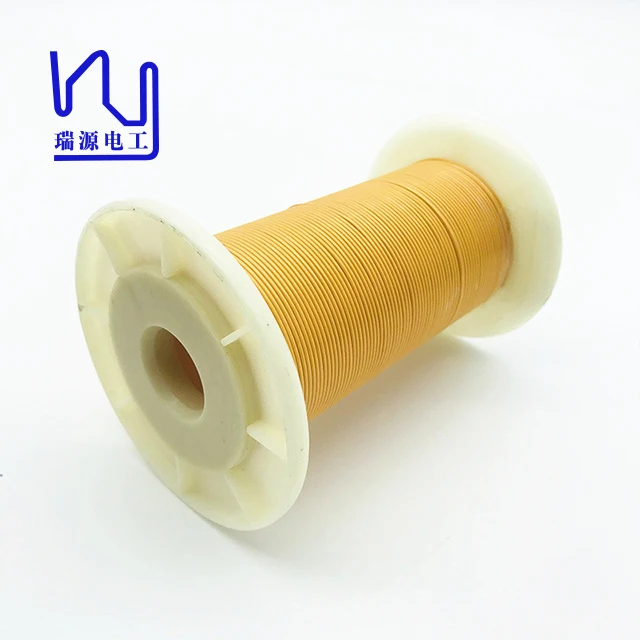

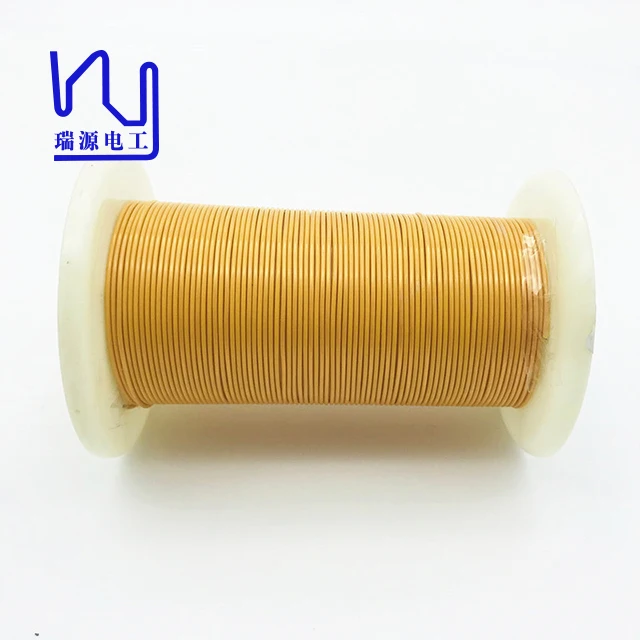

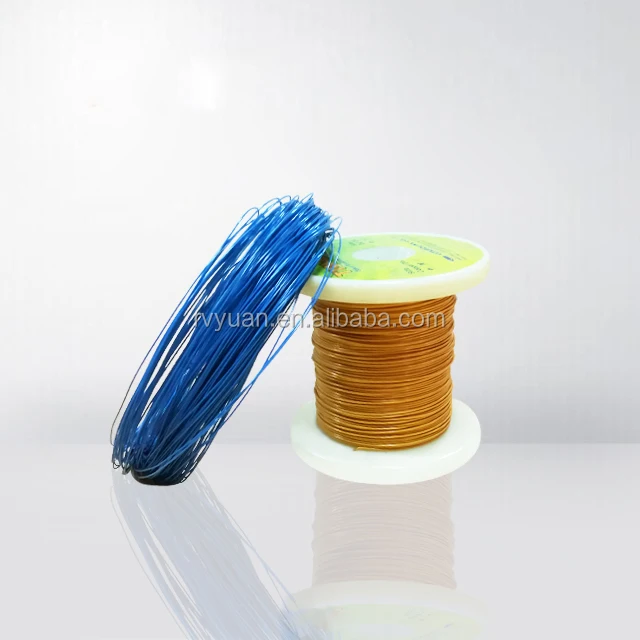

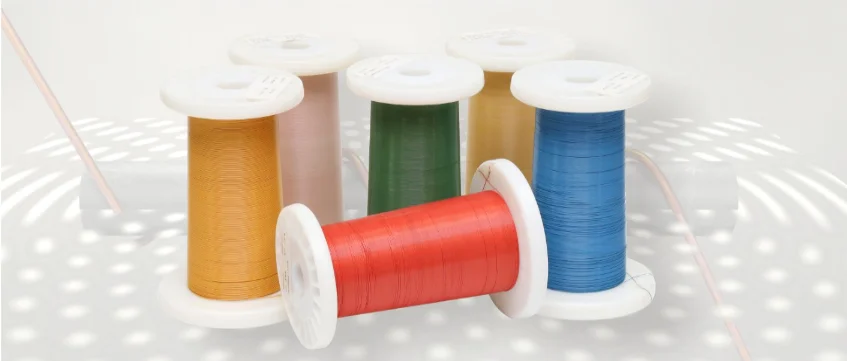

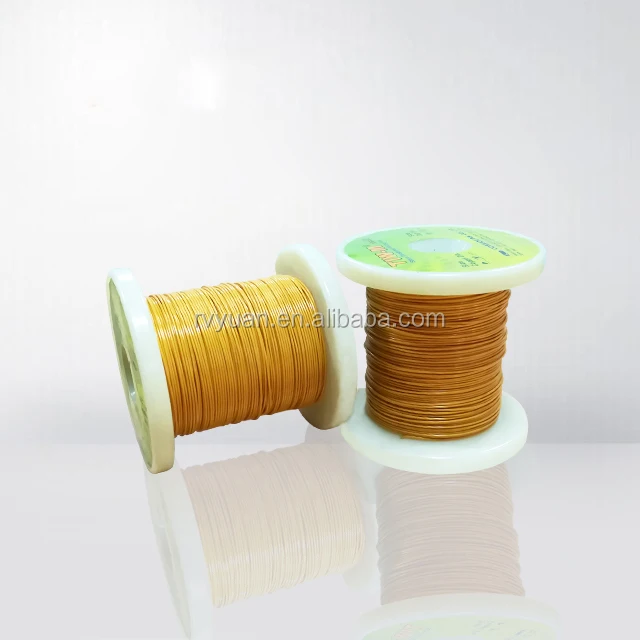

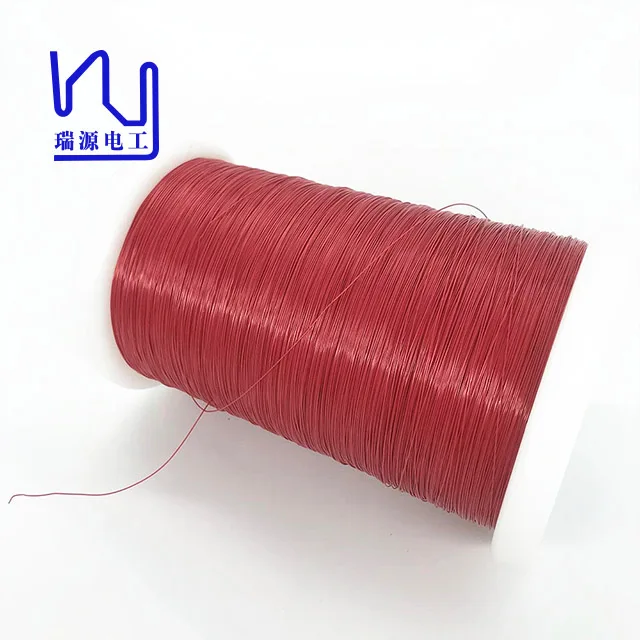

TIW
1. Production standard range:0.1-1.0mm 2. Withstand voltage class, class B 130℃, class F 155℃. 3.Excellent withstand voltage characteristics, breakdown voltage greater than 15KV, obtained reinforced insulation. 4.No need to peel off the outer layer can be direct welding, solder ability 420℃-450℃≤3s. 5.Special abrasive resistance and surface smoothness, staticfriction coefficient ≤0.155, the product can meet the automatic winding machine high-speed winding. 6.Resistant chemical solvents and impregnated paint performance, Rating voltage Rated voltage(working voltage)1000VRMS, UL. 7. High strength insulation layer toughness, repeated bending strethc, the insulation layers will not crack damage.
Product Paramenters
|
Characteristics
|
Test Standard
|
Conclusion
|
|
Package
|
Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton’s seal is complete
|
OK
|
|
Bare Wire Diameter
|
0.30±0.01MM
|
0.295-0.301
|
|
Overall Diameter
|
0.50±0.020MM
|
0.493-0.501
|
|
Conductor Resistance
|
MAX: 261.0Ω/KM
|
255.6Ω/KM
|
|
Breakdown voltage of straight wire
|
The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV
|
OK
|
|
Breakdown voltage of bending wire
|
The length of wire 305mm , Test condition:1mA/60S/4.5KV
|
OK
|
|
Breakdown voltage of twist wire
|
The length of wire 125mm , Test condition: 50HZ/1mA/60S/AC10KV
|
OK
|
|
Elongation
|
MIN:20%
|
23.8-26.9%
|
|
Solder ability
|
420 4-5 Secs
|
OK
|

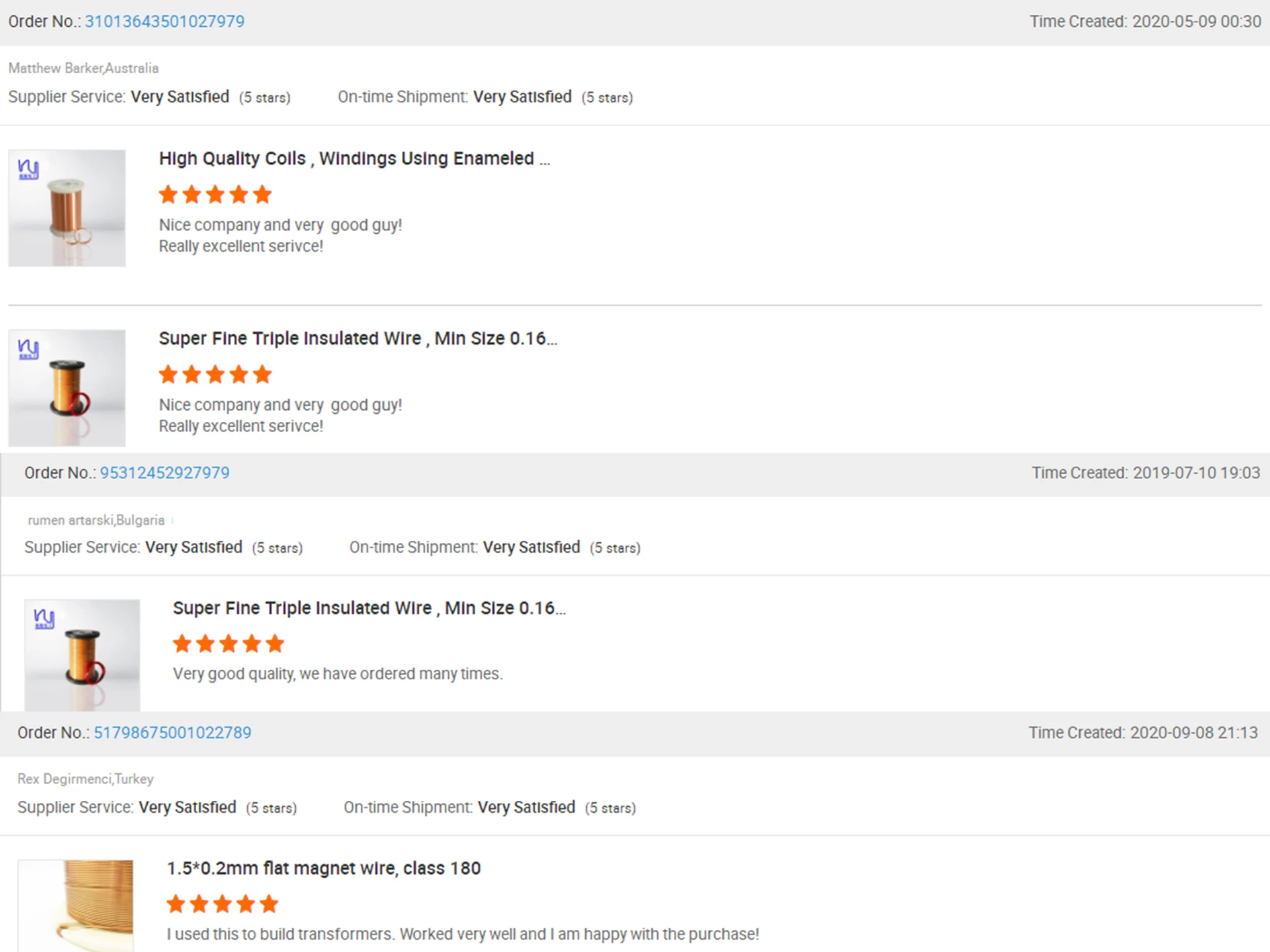

Reviews

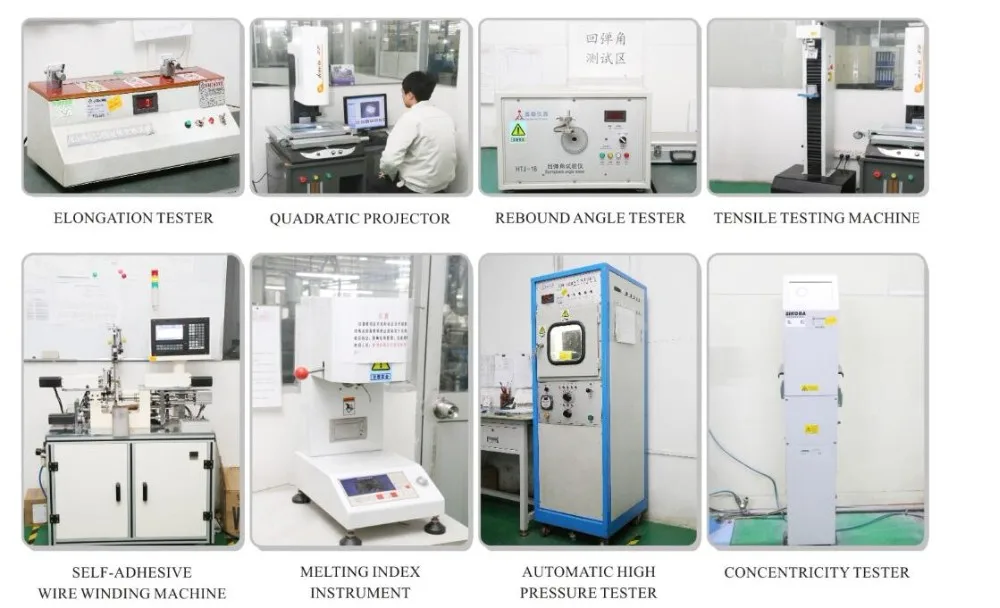

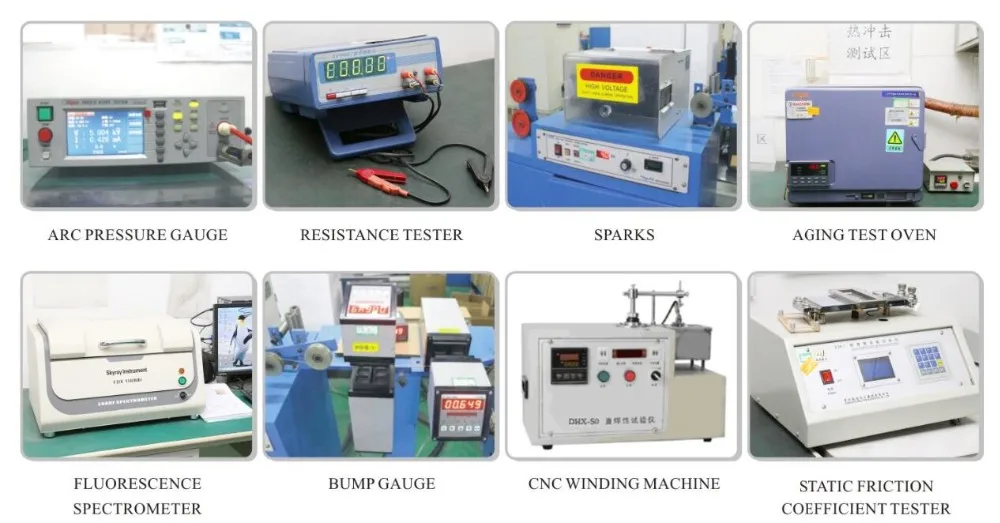

Test Equipment

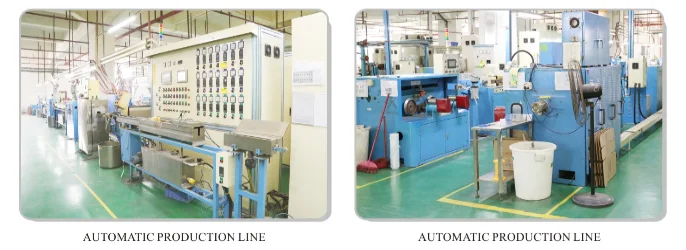

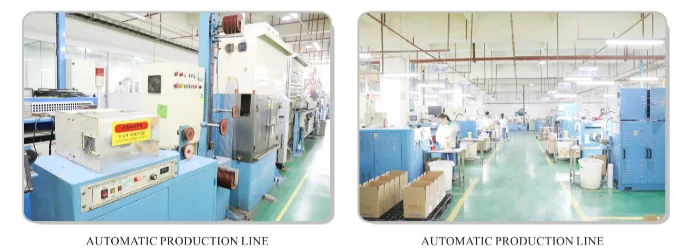

Production Flow

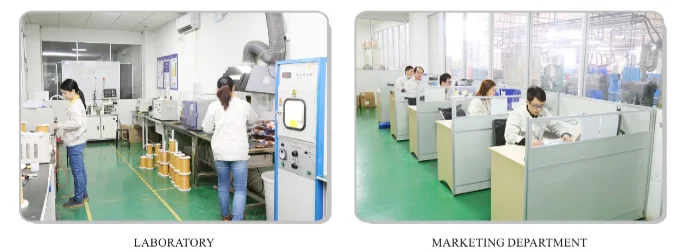

Our Company

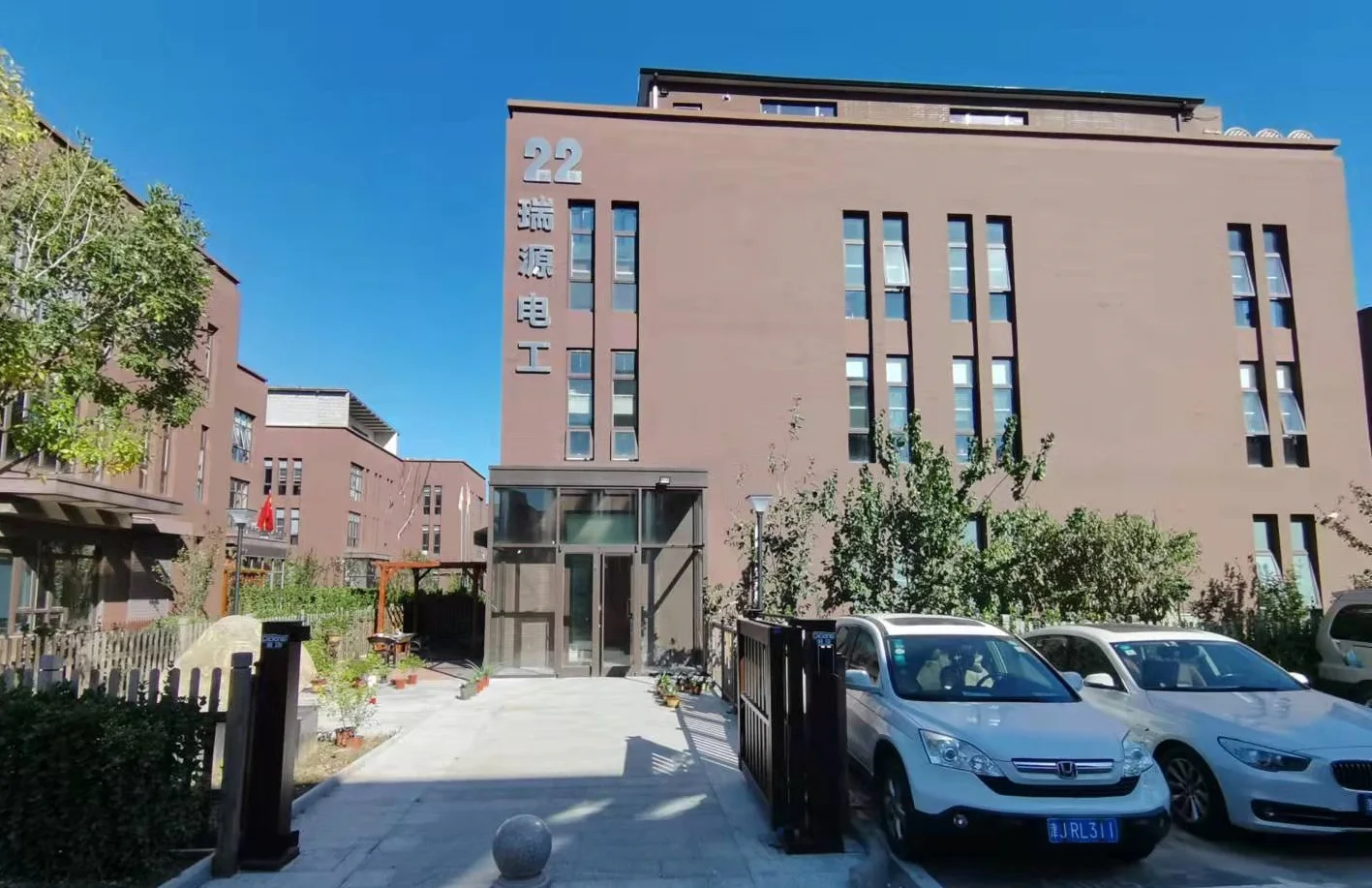

Ruiyuan was established in 2002. We have been focusing on different kinds of high quality wires: enameled copper wire, flat enameled magnet wire, silk covered Litz wire, and triple insulated wire. We have 19 high-speed TIW production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL
insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.
FAQ
1.Can I get sample for testing before bulk order?
Of course.Samples can be offered to you by free, but express costs should be undertaken by buyer.
2..What is your lead time?
Small sample order 3-5 working days; Large order should be within 15 working days after order confirmed.
3. What’s your Guarantee?
Within 2 years, if any quality problem, the defect products will be all replaced at once.
4. How to purchase from us?
Offer Requirement for Inquiry →Producing Sample →Sample Confirmation → Quotation →PI → Confirm PI → Arrange Payment→ Manufacture →Shipping
