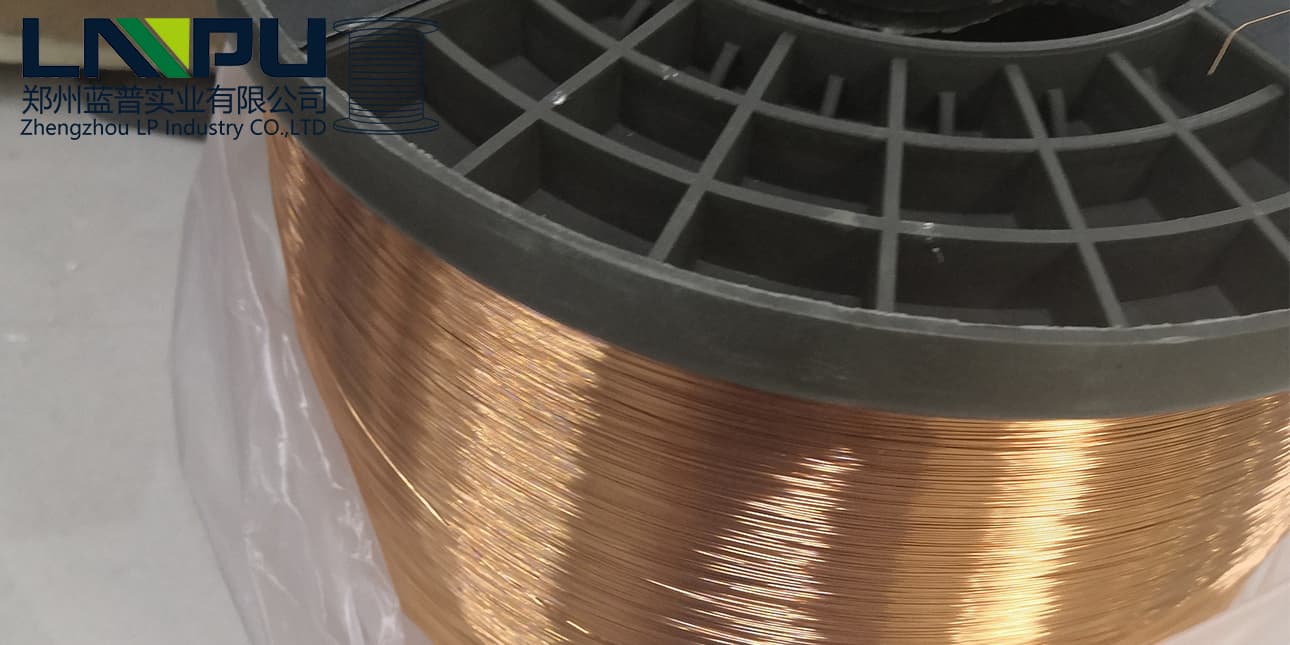

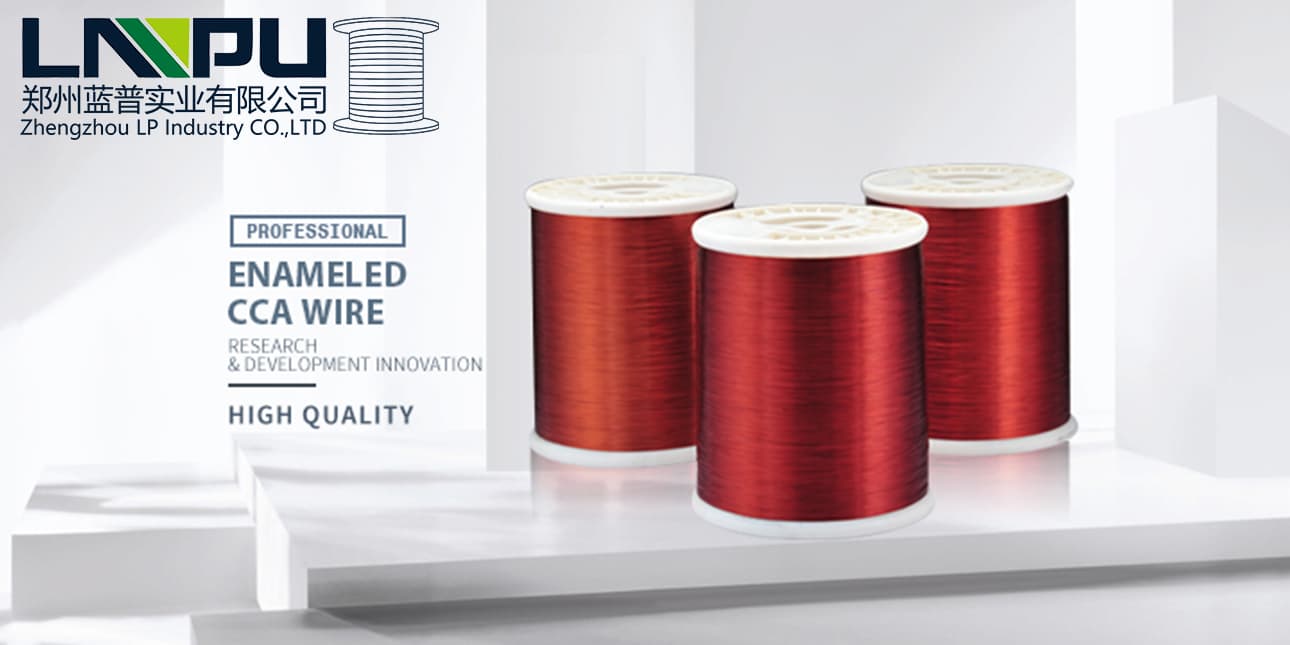

Enameled Copper Clad Aluminum (ECCA) wire with a "Class 180" designation refers to a specific type of magnet wire, which is primarily used in electrical and electromagnetic applications. Copper-clad aluminum wire is a composite wire where a layer of copper is clad onto an aluminum core. This combines the benefits of both metals - the excellent conductivity of copper and the lightweight properties of aluminum. CCA wire is often used to reduce weight and cost in applications where full copper wire might be too heavy or expensive.
Specs
Conductor: Copper Clad Aluminum
Thermal Class: 180C
Shape: Round Type
Insulation Building: Self-adhesive
Pros
Cost-Effectiveness
Combines the benefits of CU and AL
Cons
Lower Electrical Conductivity
Limited Temperature Rating
Enameled Copper clad aluminum wire adopts advanced cladding welding manufacturing technology,the high quality copper strip concentrically coated on the outer surface of the conductor,such as aluminum rod or wire and copper layer and the core formed between firm metallurgical bonding between the atoms. Make the combination of two different metal materials as an integral whole, can be like processing a single wire drawing and annealing processing, copper and aluminum in the process of drawing with variable diameter ratio,volume ratio of copper layer remained relatively constant.
Enameled Type
Polyester
Modified Polyester
polyester-imide
Polyamide-imide
polyester-imide /Polyamide-imide
Insulation Type
PEW/130
PEW(G)/155
EIW/180
EI/AIW/200
EIW(EI/AIW)220
Thermal class
130, CLASS B
155, CLASS F
180, CLASS H
200, CLASS C
220, CLASS N
Conductor
CCA
CCA
CCA
CCA
CCA
Size(mm)
0.19-4.0
0.19-4.0
0.19-4.0
0.19-4.0
0.19-4.0
Enamel thickness
Grade(0,1,2,3)
Grade(0,1,2,3)
Grade(0,1,2,3)
Grade(0,1,2,3)
Grade(0,1,2,3)
Standard
IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000
IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000
EC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000
IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000
IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000
