A; 18N20P complete set of spare parts (excluding enameled wire)
B; 18N24P complete set of spare parts (excluding enameled wire)
C; 18N20P assembled finished product (unwound)
D; 18N24P assembled finished product (unwound)
E; 18N20P finished machine (24V3000 rpm)
F; 18N24P finished machine (24V3000 rpm)
This product uses high-quality silicon steel sheet high-speed punch stator，Use high permeability steel tube to finish turning steel ring，High performance Nd-Fe-B high intensity magnetic steel with high temperature resistance，The bracket is made of engineering plastics，A high performance brushless motor can be assembled by simply winding。It can be used as power motor of multi rotor aircraft，Its performance is no less than that of similar products on the market。meanwhile，This is also a high efficiency generator，Receiving external force transmission，It can output three-phase alternating current，It can be converted into direct current by adding three-phase rectifier bridge。When this product is delivered，Pre assembled（But the rotor bracket、Steel ring、The magnetic steel was not formally installed, glued or fixed），The assembly after installing the magnet is shown in the main figure，For easy disassembly，After purchase，The rotor needs to be glued and fixed，And press the magnetic steelＮＳＮＳ..The end cover bracket groove and the inner wall of the steel ring are installed with staggered polarity，After the glue is completely cured, the final assembly can be powered on for testing。The default slot configuration of the kit is１８Ｎ２０Ｐ（１８groove２０extremely），Please contact customer service online if you need other pole slot ratio。
The drawing of this product is for reference only，Product iterative update optimization upgrade，Physical details may vary，Know before purchasing。thank you。
1）"Complete set of spare parts"：It refers to the semi-finished product that can be disassembled at the time of delivery，Without enameled wire，When disassembling by oneself，Be sure to keep the removed parts，If there are missing parts, we will not reissue them。
2）"Finished product（Untwisted）"：It refers to the rotor at the time of delivery、Semi finished products with installed stators，It only needs self winding and debugging to work。
3）"Finished winding machine"：Turn on the electricity when you get it，Users need to be equipped with their own brushless drive（Or model airplane electric control），Connect the motorUVWThree phase lines can work，The maximum operating speed is about24V3000turn。
We don't offer teaching videos，No tutorial，No technical support，No after sales，Users need to study by themselves、assemble、debugging，Our storeNot responsible for the results after assembly。Unit colleges and universities purchase a large number of complete sets of spare parts，The kit is no longer pre assembled in our store，For the full set of bulk shipment。
Product specifications：
size：diameter70.5*thick34mm（Without output shaft）
weight：about300g
Rotating shaft：Φ8mm*17mm
stator：diameter60*thick10mm
Slot configuration：18groove20extremely

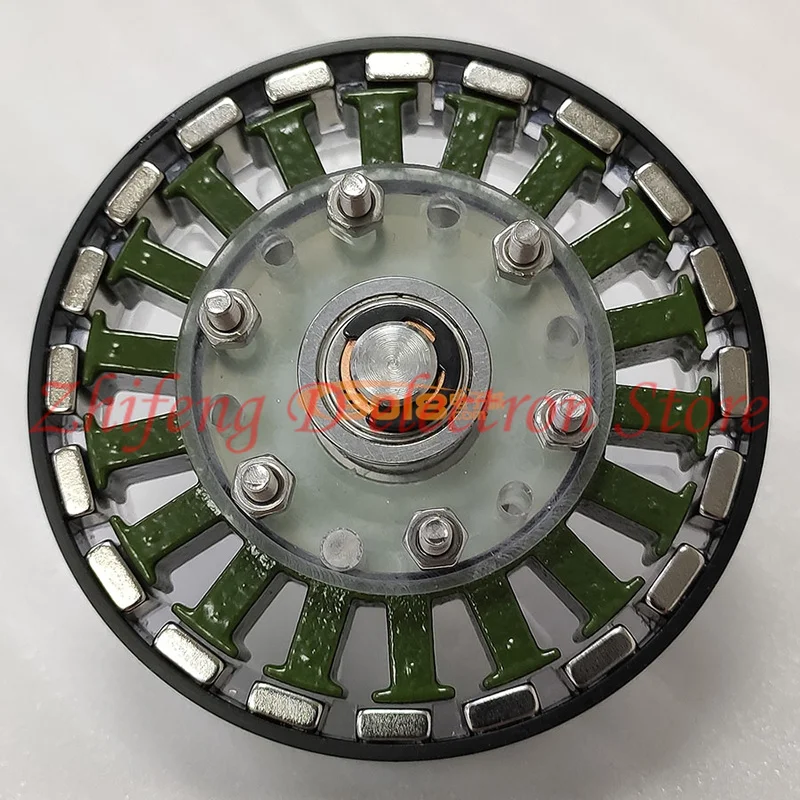

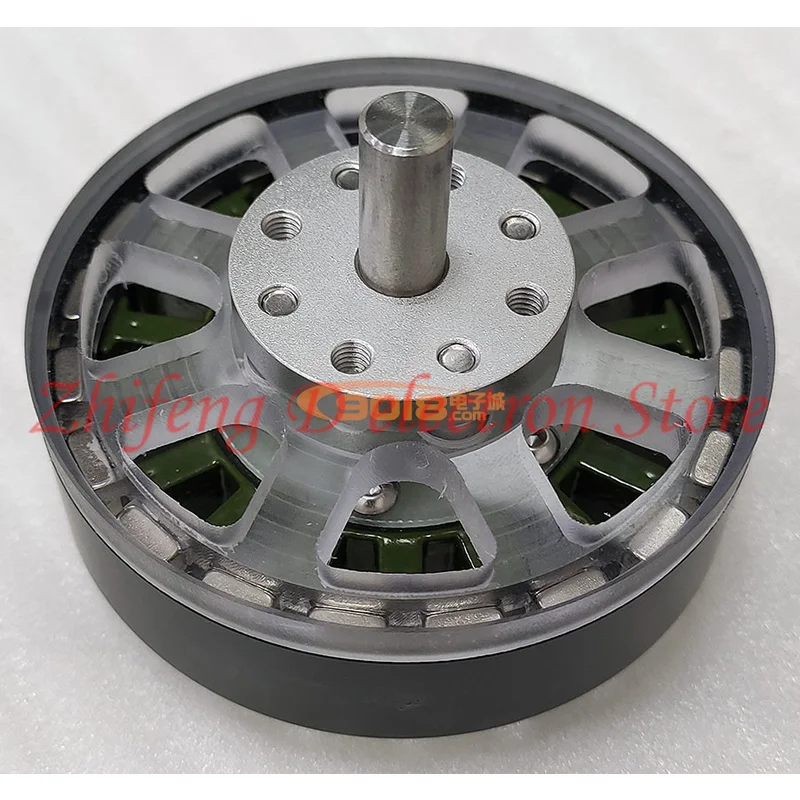

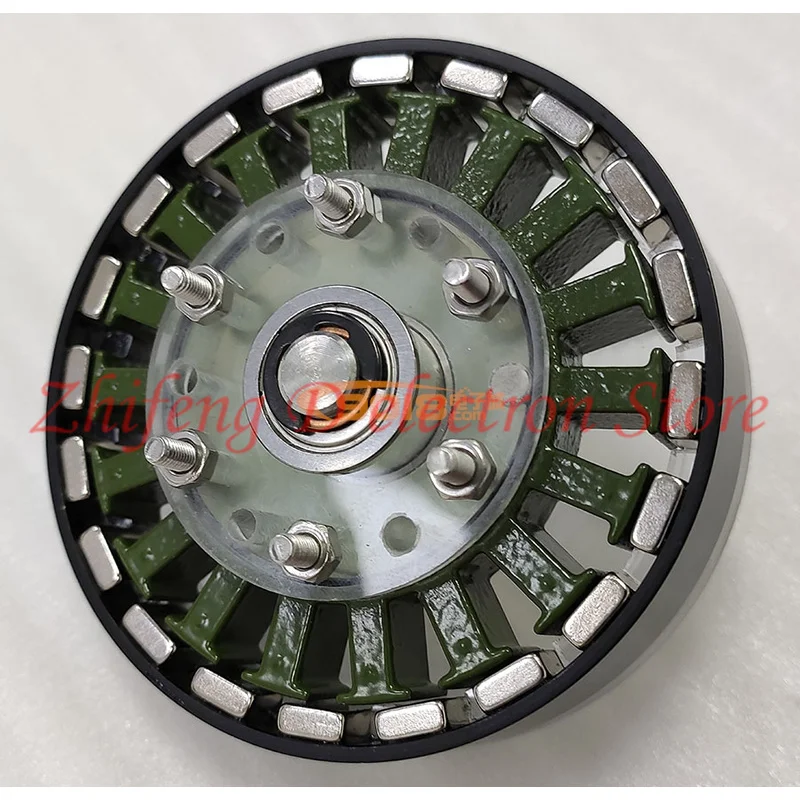

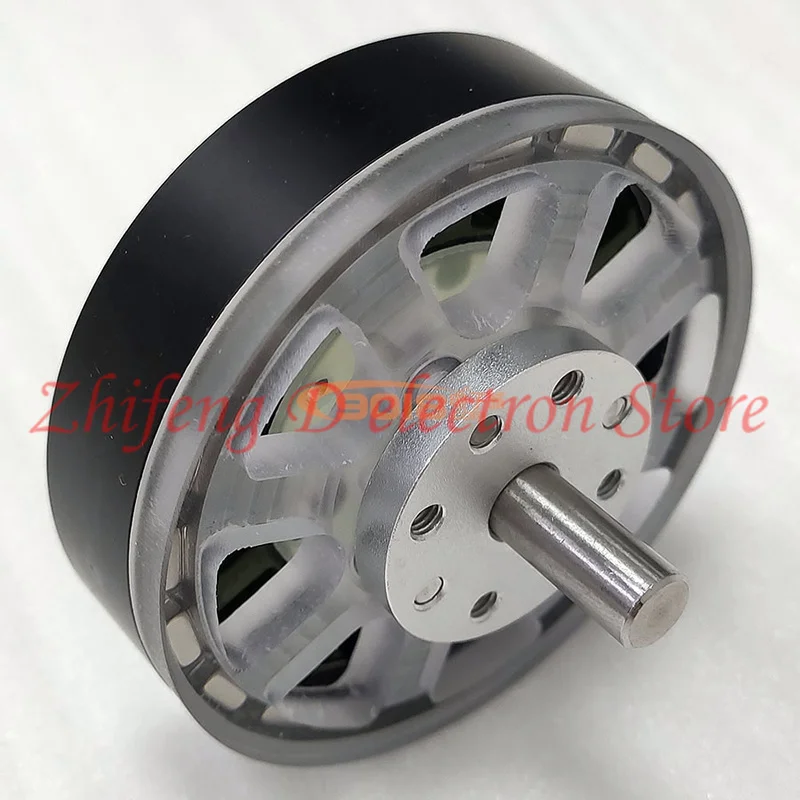

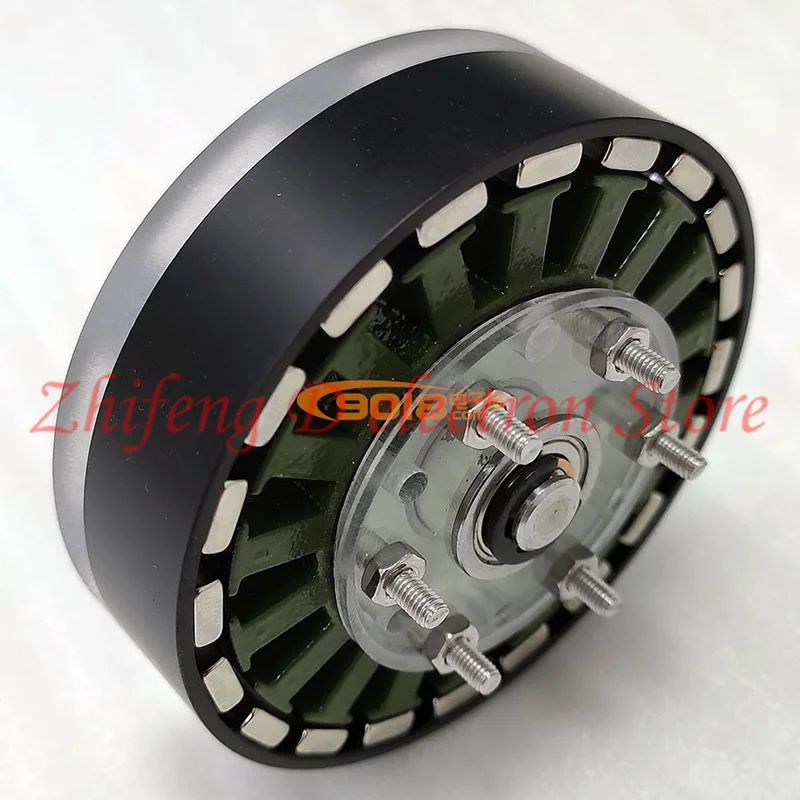

Product picture：
