Product parameters:
Nominal impedance: 8Ω/4Ω
DC impedance: 6.5/3.6Ω

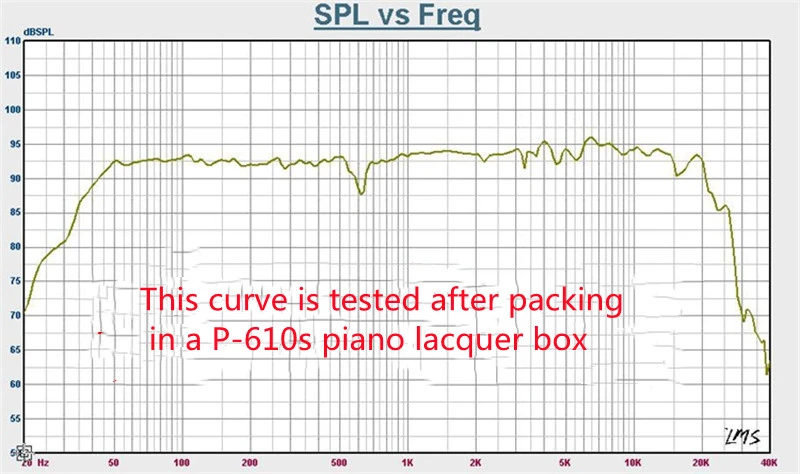

Frequency range: 56~20KHZ
Sensitivity: 93.2dB
Rated power: 12W/MAX25W
Total quality factor (Q value): 0.52
Equivalent volume (Vas): 24.8L
Paper cone material: leather paper cone
Magnetic circuit structure: symmetrical magnetic circuit
Basin frame material: 1mm iron basin frame

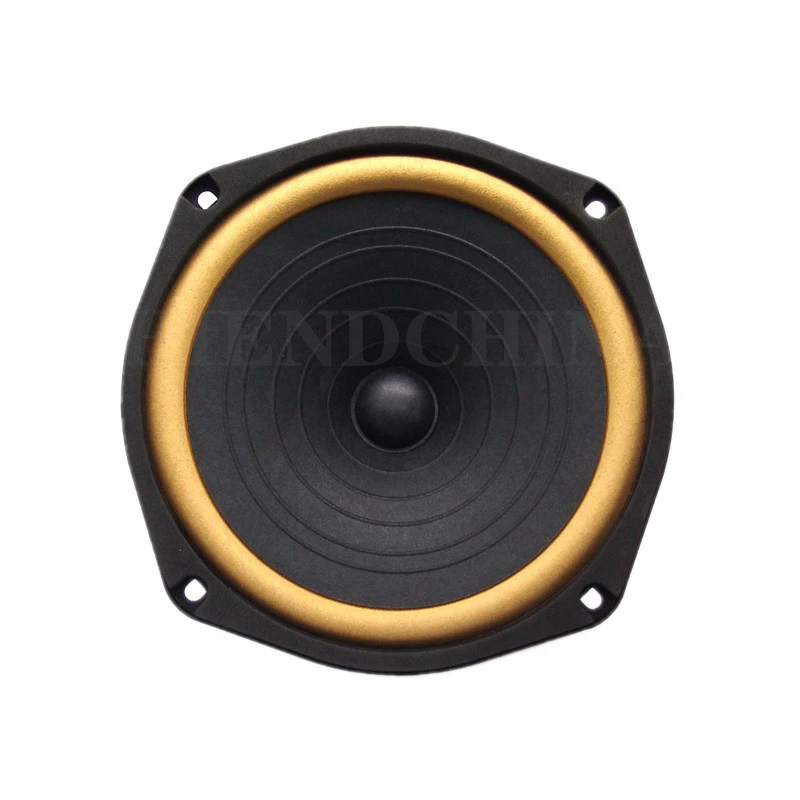

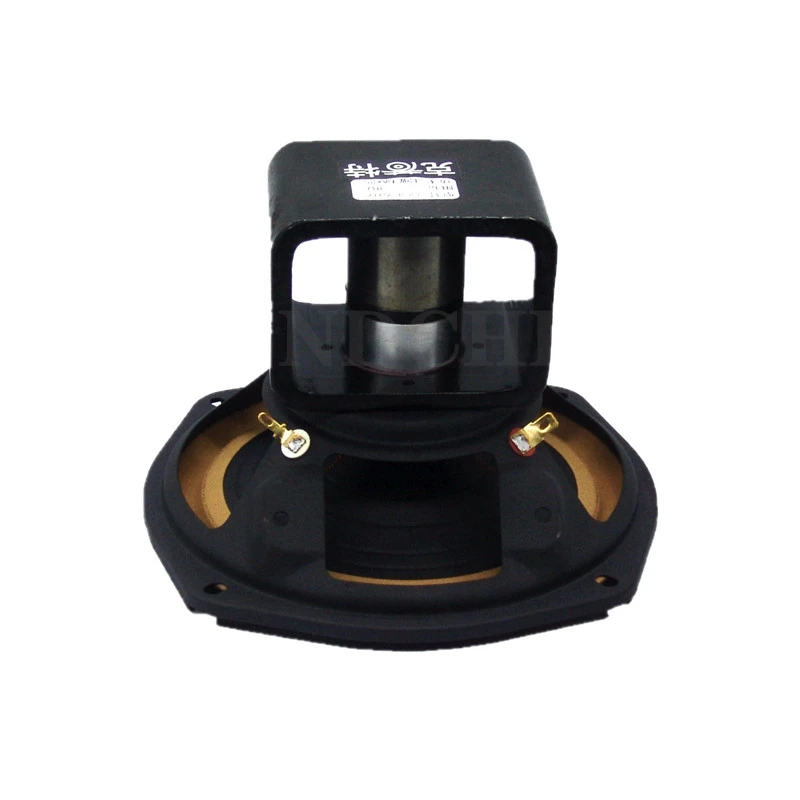

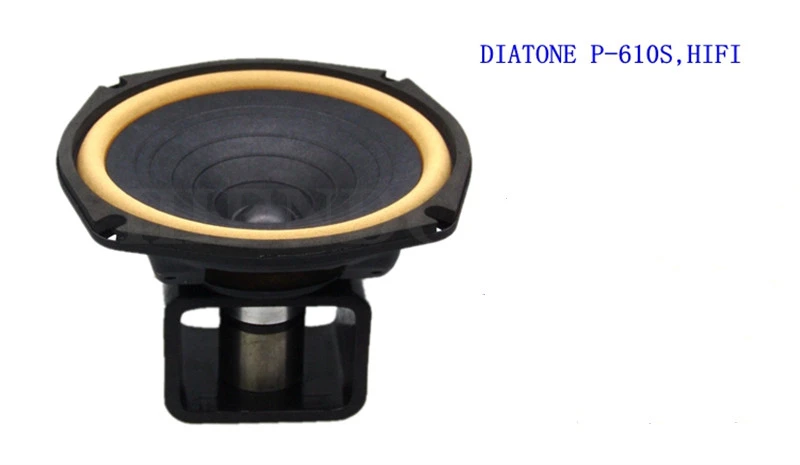

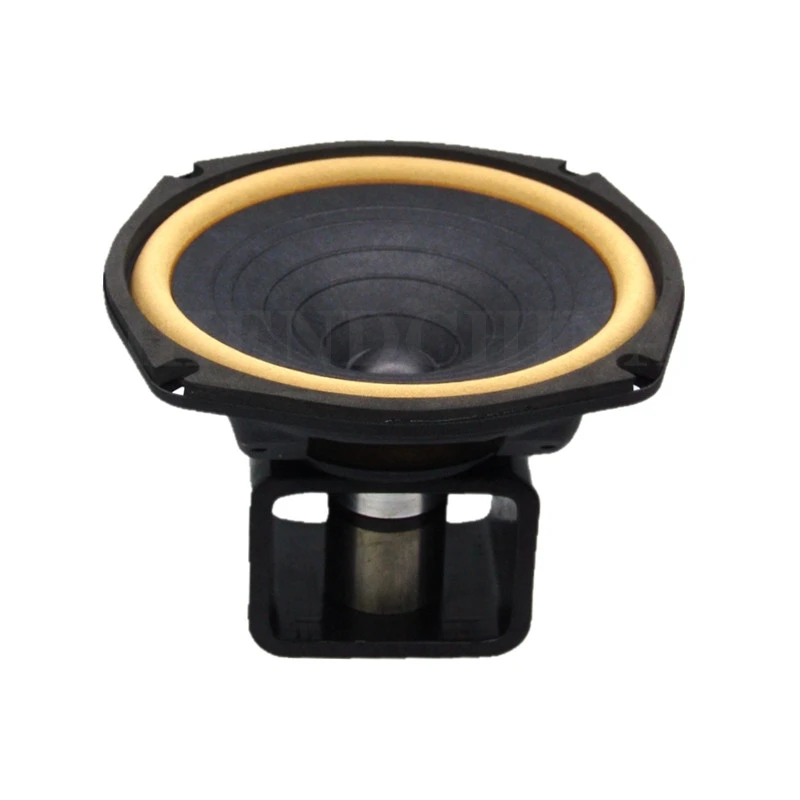

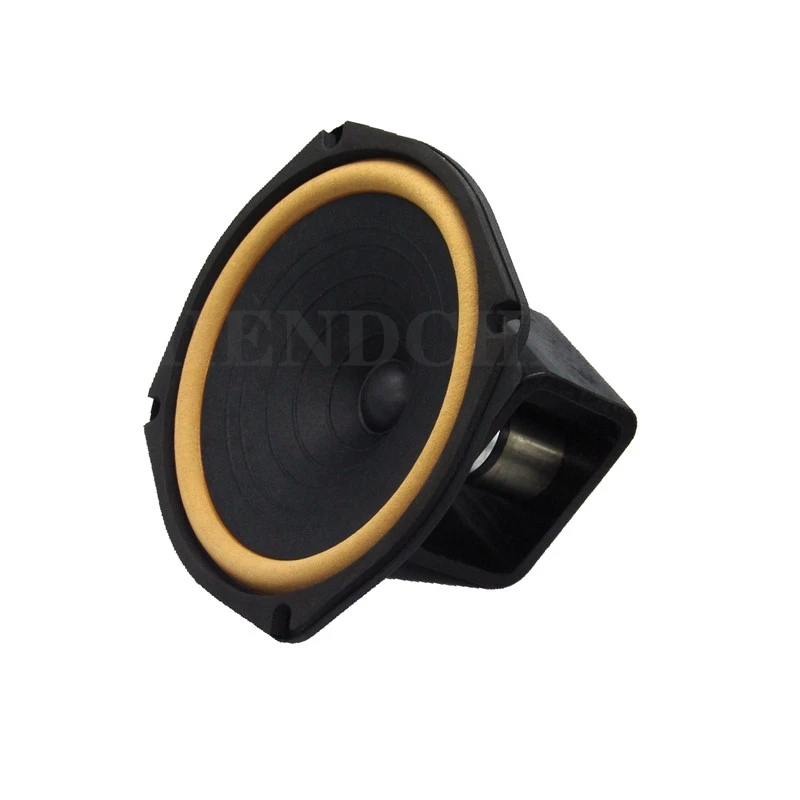

Product display:

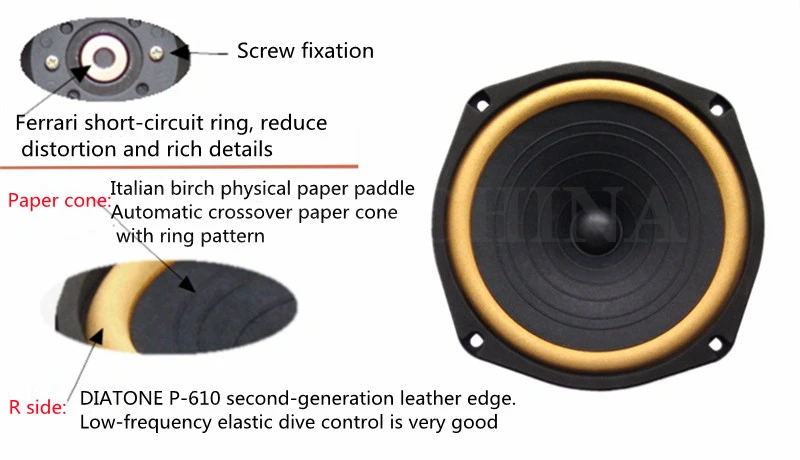

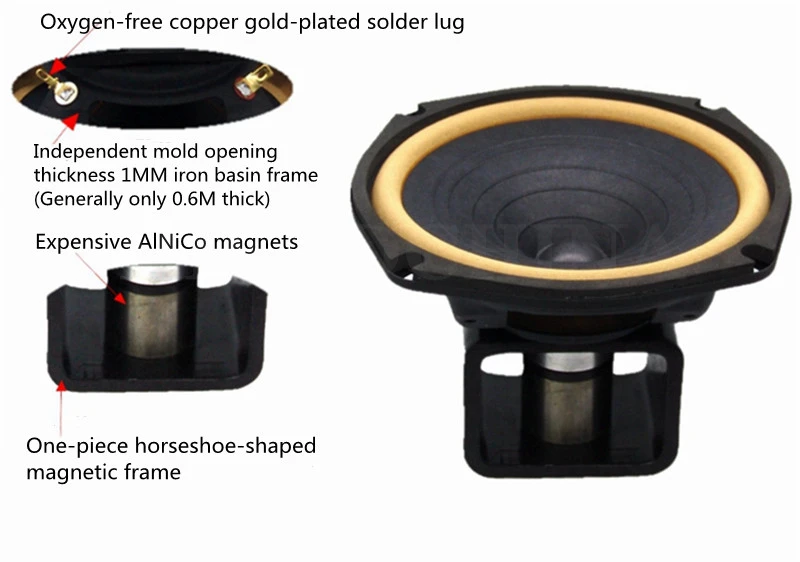

Product details:
Voice coil: KAPT0NE voice coil, British imported 6N enameled wire
Bounce: CONEX bounce, good anti-fatigue consistency
Lead wire: high temperature resistant oxygen-free copper stranded wire imported from Japan

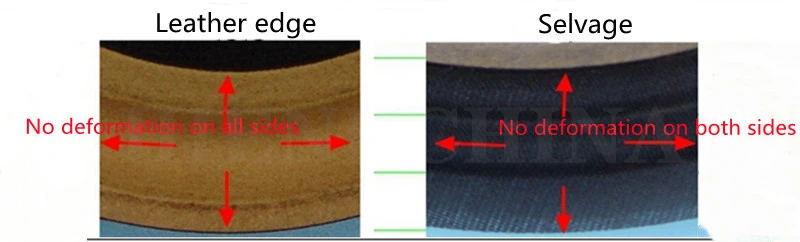

The difference between leather edge and cloth edge:
1: The leather edge is evenly flat after forming. After the edge of the fabric is formed, there is a net pattern on the back.
2: The warp and weft of the leather side will not be deformed, and the two sides of the cloth side will not deform, so that the R side will be seriously affected when there is a regular vibration.
3: The sound of the leather edge is soft and mellow, and the sound of the cloth edge is dry and odorous. The leather edge has good elasticity at low frequencies and good control. The low frequency hard cloth edge is mostly used for professional stage speakers.

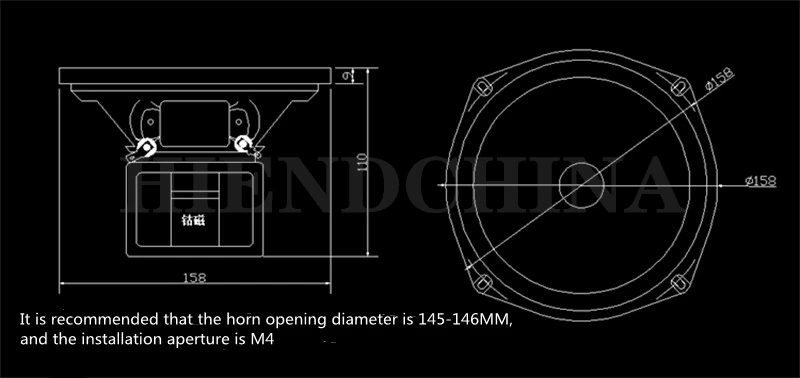

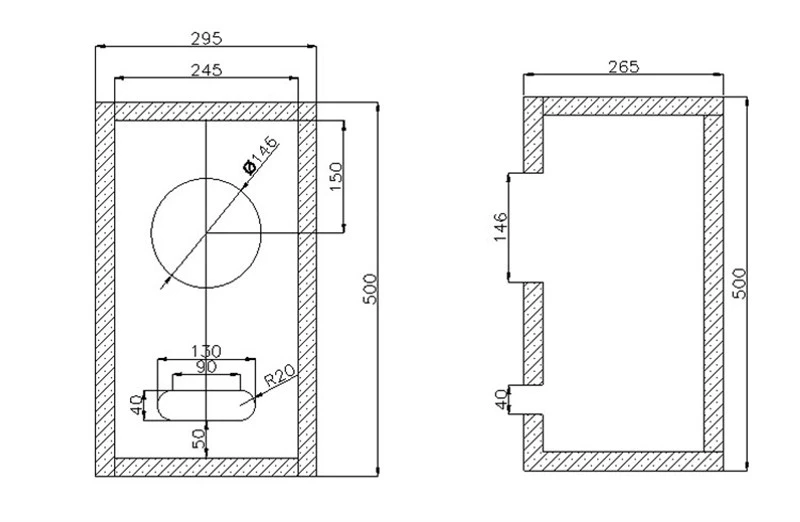

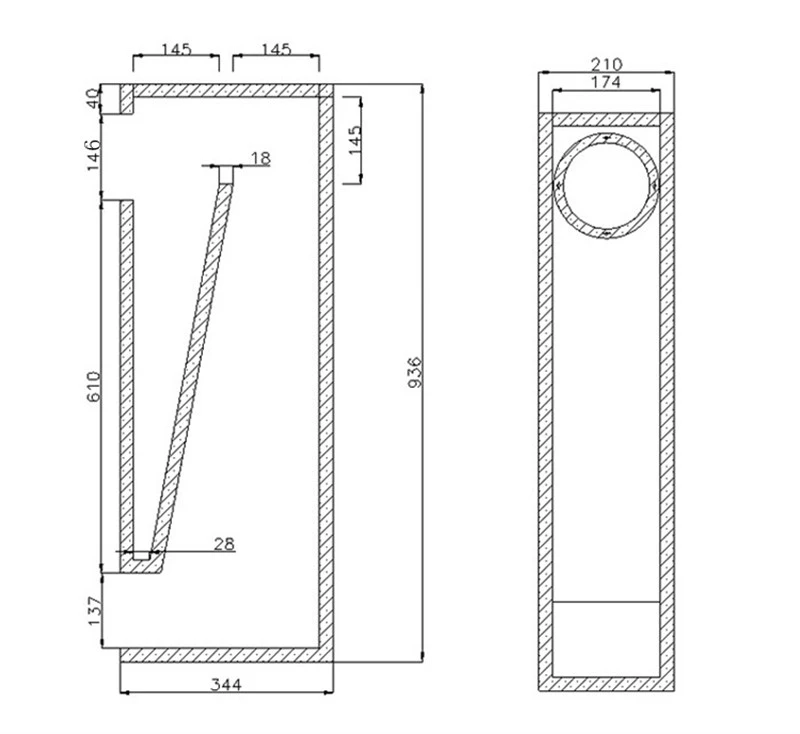

Product structure:
