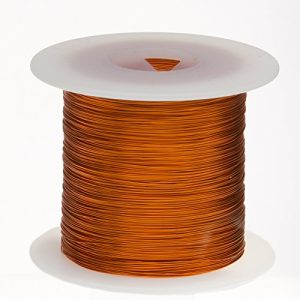

0.6mm QZY-2-180 Enameled Copper Wire
0.6mm QZY-2-180 Enameled Copper Wire is a defined product configuration for transformer, motor, inductor, electromagnet, prototype, and electrical repair winding. The listed specifications are 0.6mm conductor size, 20m length, copper core, and QZY-2-180 insulation designation. This information gives engineers, maintenance teams, and purchasing departments a practical starting point for comparison, but the final selection should always be checked against the complete electrical, thermal, mechanical, dimensional, and compliance requirements of the assembly.
This article explains the product definition, construction, parameters, properties, performance, manufacturing process, applications, standards, comparison points, selection method, and ordering questions. It keeps the useful values from the original listing and separates listed facts from details that should be confirmed in a supplier datasheet or inspection record.
Product Definition
This product is an enameled copper magnet wire: a copper conductor coated with a thin electrical insulation layer so it can be formed into compact coils. The 0.6mm value is the listed size reference, while QZY-2-180 identifies the listed insulation construction and 180 class reference. The designation is useful for procurement, but coating thickness, dielectric values, solderability, tolerance, and test evidence should be confirmed in the supplier documentation.
The product should be understood as one part of a larger design. A conductor, insulation system, cable bundle, or reinforcement layer can meet its basic description and still be unsuitable if the finished assembly has the wrong current, resistance, temperature rise, bend radius, winding space, connector layout, or environmental exposure. The correct purchasing description therefore combines the product name with measurable dimensions, quantity, application, and acceptance criteria.
For repeat orders, preserve the approved drawing, sample, specification revision, packaging reference, and inspection method. This makes it easier to identify changes between lots and reduces the risk of selecting a visually similar but technically different replacement.
Key Parameters
| Parameter | Listed value or description |
|---|---|
| Product type | Enameled copper magnet wire |
| Conductor diameter | 0.6mm |
| Length | 20m |
| Conductor material | Copper |
| Insulation designation | QZY-2-180 |
| Typical use | Magnetic coil winding and repair |
| Supply form | 20m wire length; confirm package format |
The 20m length is practical for samples, maintenance, prototypes, small transformers, inductors, motor repair, and educational assemblies. Production buyers should add lead ends, setup waste, test pieces, rework allowance, and any longer-reel requirement to the purchase calculation.
Where the original listing does not state a tolerance, finished diameter, resistance, insulation build, shielding structure, or test result, do not invent a value. Request that information before production approval. A short technical confirmation is especially important when the product is being used to replace an existing part.
Properties and Performance
The copper core provides the current path and can be formed around a bobbin, core, former, or other winding structure. The enamel keeps adjacent turns electrically separated. The 0.6mm size creates a balance between winding space, current path, resistance, and mechanical handling. QZY-2-180 is a thermal and insulation selection reference; actual performance also depends on current, cooling, winding geometry, surrounding materials, and connection quality.
- Electrical behavior: conductor material, cross-section, length, temperature, and connection quality influence resistance, voltage drop, current density, and signal behavior.
- Thermal behavior: a temperature or insulation designation is a selection reference; the complete assembly still needs a temperature-rise and cooling review.
- Mechanical behavior: winding tension, repeated bending, abrasion, pull force, sharp edges, and strain relief can affect service life.
- Dimensional behavior: conductor size, coating build, outer diameter, and package form affect installation space and production repeatability.
- Termination behavior: enamel, insulation, or jacket material must be removed or prepared using a compatible process before connection.
Manufacturing Process
Manufacturing begins with copper rod inspection for conductivity, chemistry, surface quality, and dimensional consistency. The rod is drawn through precision dies until the bare conductor reaches the required 0.6mm reference. Drawing reduction, die condition, tension, and cleaning are controlled because conductor variation changes resistance, winding fill, length per mass, and final coil dimensions.
After drawing, the copper is cleaned and dried so the enamel adheres consistently. The QZY insulation system is applied through controlled coating dies or applicators, often in multiple passes. The wire travels through curing ovens where volatile components are removed and the polymer film is cured. Line speed, oven profile, coating viscosity, centering, and tension are monitored during this stage.
Samples are checked according to the approved specification. Possible checks include overall diameter, resistance, insulation continuity, pinholes, dielectric breakdown, adhesion, flexibility, abrasion, and thermal aging. The finished wire is wound into the listed 20m package or another agreed format, protected from abrasion, and labeled with size, insulation designation, length, lot, and inspection information where applicable.
Before shipment, the finished product is measured, visually inspected, and packed in a way that protects it from moisture, contamination, crushing, and abrasion. Depending on the agreed specification, quality checks may include dimensions, resistance, continuity, insulation integrity, flexibility, adhesion, dielectric performance, tensile behavior, repeated bending, length, weight, and label accuracy. The exact checks should be documented in the purchase order rather than assumed from a product title.
Applications
This wire can be evaluated for transformer and inductor coils, motor winding repair, electromagnetic coils, solenoids, small generators, prototypes, educational electrical models, and maintenance replacement. It is appropriate when the 0.6mm conductor and QZY-2-180 insulation reference match the project requirements.
- Transformer and inductor windings
- Small motor and generator repair
- Electromagnetic coils and solenoids
- Prototype and laboratory winding work
- Educational electrical models
- Replacement wire for maintenance projects
Before using the product as a replacement, compare it with the original part by size, material, insulation, resistance, quantity, connection method, operating temperature, and available installation space. A product that looks similar in a photograph may have a different finished dimension or electrical behavior.
Standards and Quality Verification
QZY-2-180 should be supported by a supplier specification or technical datasheet. Depending on the target market, the order may need to reference an IEC, NEMA, JIS, GB, UL-related, or customer-specific winding-wire requirement. Name the applicable standard and inspection method in the purchase specification instead of assuming compliance from the product title.
A practical incoming inspection can include visual condition, dimensional measurement, electrical continuity, resistance, insulation review, length or weight verification, and packaging and label checks. For higher-risk assemblies, add the applicable dielectric, thermal aging, abrasion, flex, tensile, or compliance-document review. Record the test method, sample identification, acceptance limit, lot number, and result so the same decision can be repeated for future deliveries.
Comparison with Other Options
| Option | Advantages | Considerations |
|---|---|---|
| 0.6mm QZY-2-180 wire | Defined copper size and insulation reference | 20m may be too short for continuous production |
| Thinner magnet wire | More turns fit in a limited window | Resistance and current capacity differ |
| Thicker magnet wire | Lower resistance may be possible | Needs more winding space |
| Jacketed hookup cable | Easy conventional stripping | Thicker insulation reduces winding density |
Comparison should be based on the complete application rather than on repeated keywords in a product title. A thicker conductor is not automatically better, a higher temperature number does not replace cooling design, and a more flexible cable is not automatically suitable for a higher-current or shielded application.
Related Internal Links

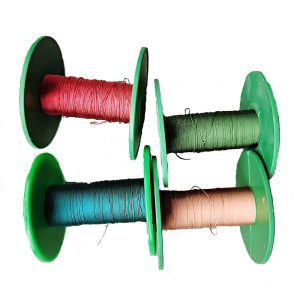

See also 14 AWG 200C Enameled Copper Magnet Wire and 20m Multi-Strand Enameled Headphone Cable 8/0.08mm. For a product directory, visit enameled copper wire.
Why Choose This Product?
Choose this product when the application needs a medium-size copper winding conductor, a listed QZY-2-180 insulation reference, and a manageable 20m length. The specification is concise enough for sample purchasing while still providing the main values engineers need to compare winding space, length, and insulation selection.
- Defined 0.6mm size supports winding-space calculations.
- 20m length is convenient for repair, samples, and small assemblies.
- Copper construction is familiar for electrical winding work.
- QZY-2-180 creates a clear insulation verification point.
- The product can be compared using measurable parameters rather than repeated keywords.
The strongest reason to choose this product is that its selection can be documented with specific, checkable information. Buyers can compare the listed size, length, construction, temperature or compliance reference, packaging, and intended use with the actual project requirement. If a requirement is missing, it becomes a clear question for the supplier instead of an unspoken assumption.
How to Select, Install, and Handle It
- Confirm the 0.6mm conductor size and tolerance.
- Confirm the required insulation designation and operating temperature.
- Calculate total wire demand, including leads, waste, and test pieces.
- Check bobbin, core, winding window, tension, bend radius, and turn count.
- Select an enamel removal method compatible with the coating.
- Inspect the finished coil for scratches, exposed copper, loose turns, and damaged leads.
Keep the product clean, dry, and protected from unnecessary mechanical stress. Use smooth guides and suitable tools during installation. Inspect the finished assembly at bends, lead exits, solder joints, connector entries, and other stress points. For repeat work, keep a retained sample and a simple receiving checklist so later operators follow the same process.
FAQ
Q: What are the listed specifications?
The product is listed as 0.6mm copper wire, 20m long, with QZY-2-180 enamel insulation.
Q: Can it be used for transformer and motor coils?
It can be evaluated when diameter, winding space, current, temperature, and insulation requirements match.
Q: Is QZY-2-180 a complete compliance certificate?
No. It is a product and insulation reference. Request the relevant datasheet and test documentation.
Q: Is 20m enough for production?
It is practical for samples and smaller jobs. Production demand should include turn count, lead length, waste, and rework.
Q: Can the wire be soldered without removing enamel?
Do not assume that. Confirm the coating type and use an approved preparation process.
Contact LP Industry
Contact LP Industry with the required product size, application, quantity, packaging preference, delivery location, operating conditions, and inspection requirements. Include a drawing, original part reference, sample, winding dimensions, connector diagram, or compliance requirement when available. Our team can review the listed construction, confirm the technical details that are not shown in the original description, and provide current availability, documents, pricing, and lead-time information.
A precise inquiry helps engineering and purchasing teams compare the same product definition. It also reduces avoidable substitutions caused by unclear dimensions, incomplete temperature information, missing cable-core details, or unverified compliance claims.
