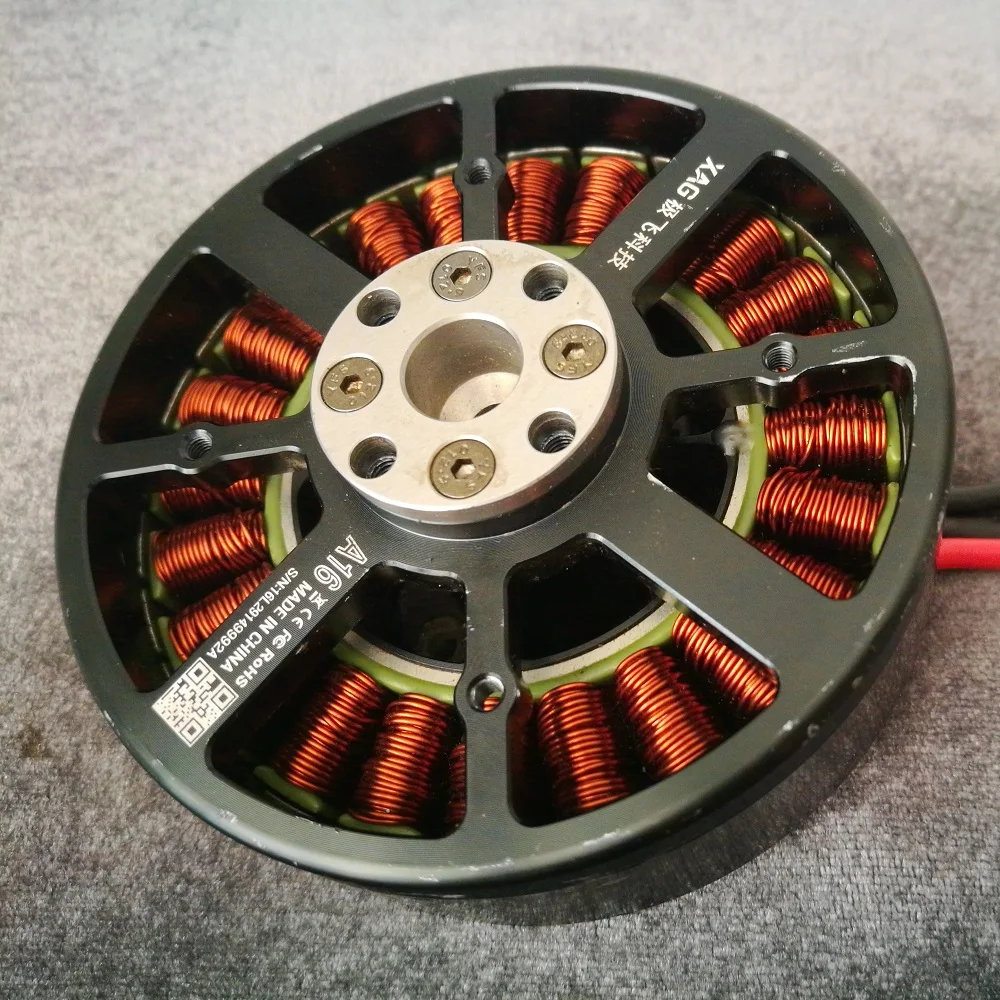

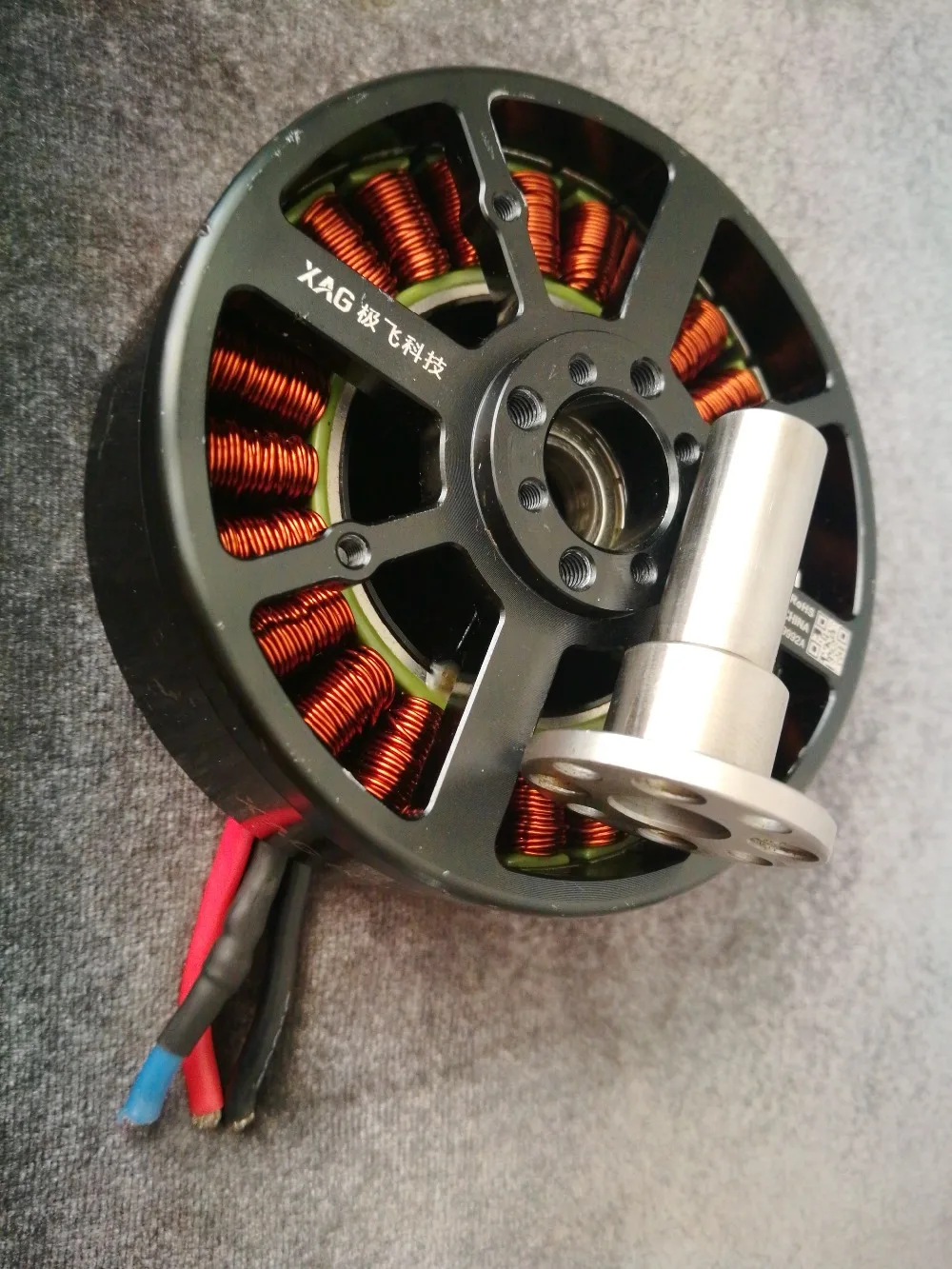

A16 Brush-less motor XAI Agricultural Intelligence engine outer rotor motor For P30 PLANT PROTECTION UAS
Motor condition: all the functions could be work well
| A16 brushless motor | |
| Dimensions (stator) | 80× 20mm |
| KV value | 100rpm/V |
| maximum power | 3000W (single) |
| Maximum pulling force | 19.5kg (single) |
| Applicable ESC: | |
| Model | VC12100 |
| Maximum working voltage | 52.2V (12S Lipo) |
| Maximum continuous working current | 100A |
| Four axis flight parameters | |
| Standard takeoff weight | 38KG (10L medicine box) |
| Maximum effective takeoff weight | 41kg (near sea level) |
| Maximum thrust weight ratio | 2.05 |
| Load ratio | 0.42 |
propeller： 36“13
Packing include:
one pc A16 motor
