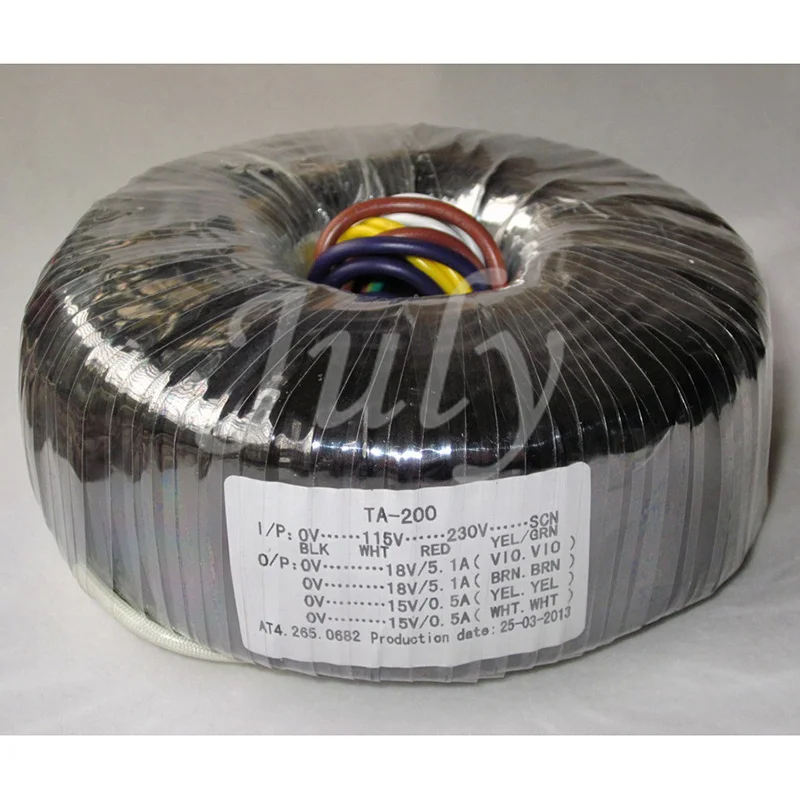

Toroidal transformer 200W dual 18V + dual 15V ring cattle power transformer
Size: diameter 120mmX height 50mm weight: 2.68 kg
Primary: 0V-115V-230V international voltage SCN ground wire
Secondary: Dual 18V (5.1A) + dual 15V (0.5A) are 4 lines.

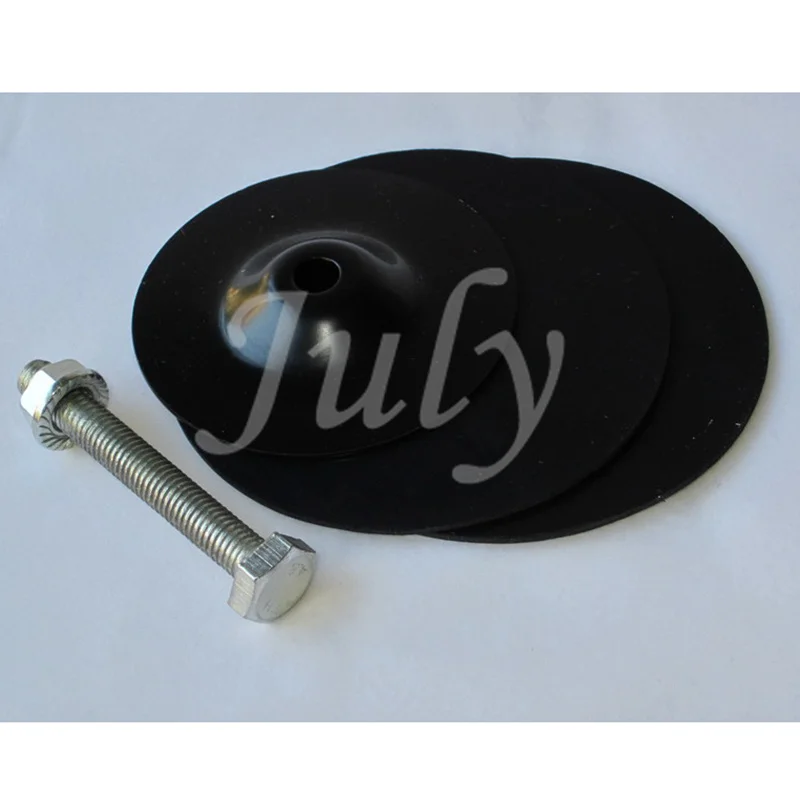

Equipped with X2 pieces of gasket, X1 pieces of iron, X1 screws.
220V to black/red (115V white wire wrapped) Green/yellow two-color wire to ground
RED red WHT white BLK black SCN ground wire
V10 firewood BRN brown YEL yellow WHT white
Toroidal transformer: specially designed for fever audio. Transformer uses imported materials. Oxygen-free copper enameled wire. Precision manufacturing, reliable performance, high cost performance.
In particular, the excitation current is small and the temperature rise is low. It is currently a high-grade domestic product with good quality. The products are sold in the international market and are well-received by the majority of enthusiasts. All have independent output lines and shielded line outputs.
