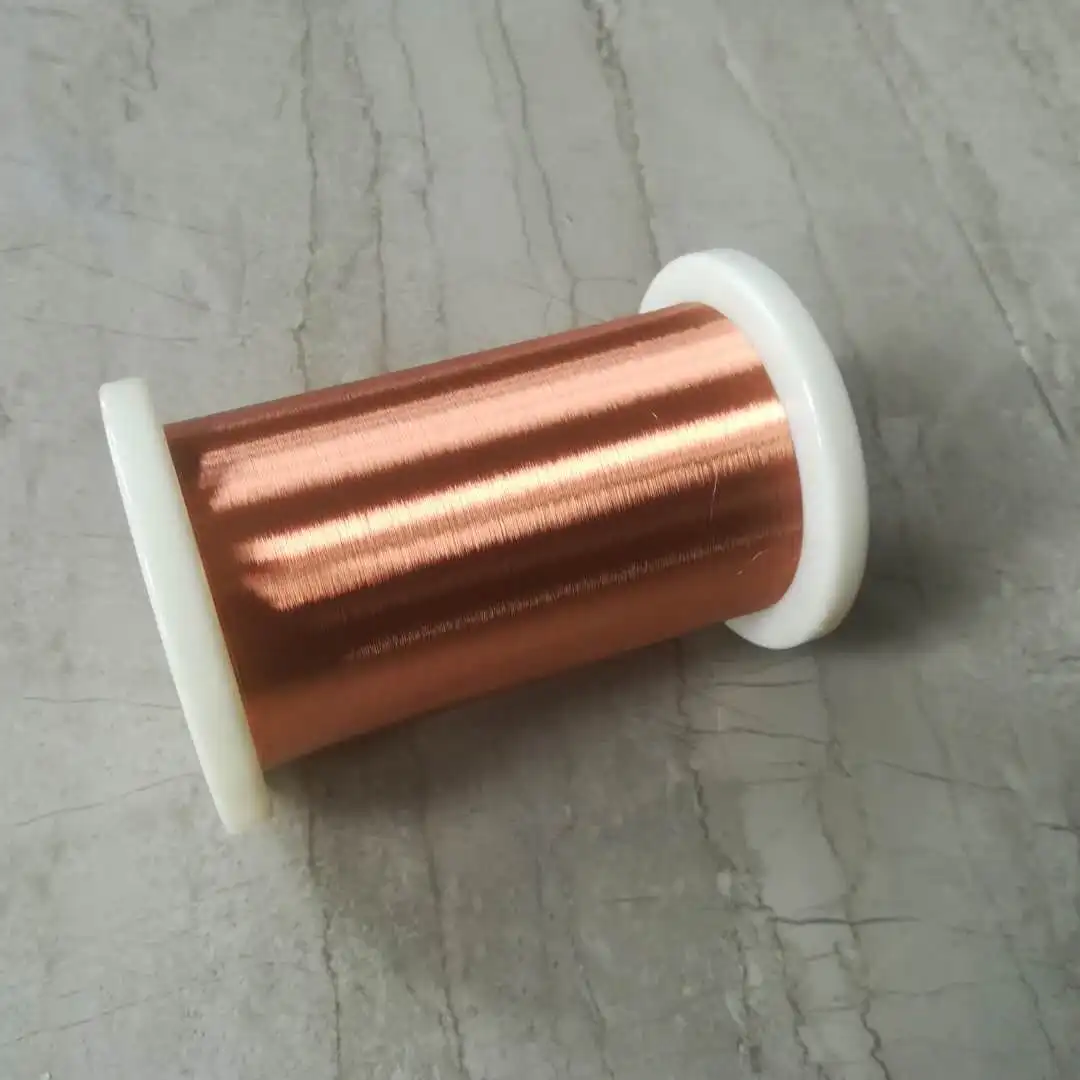

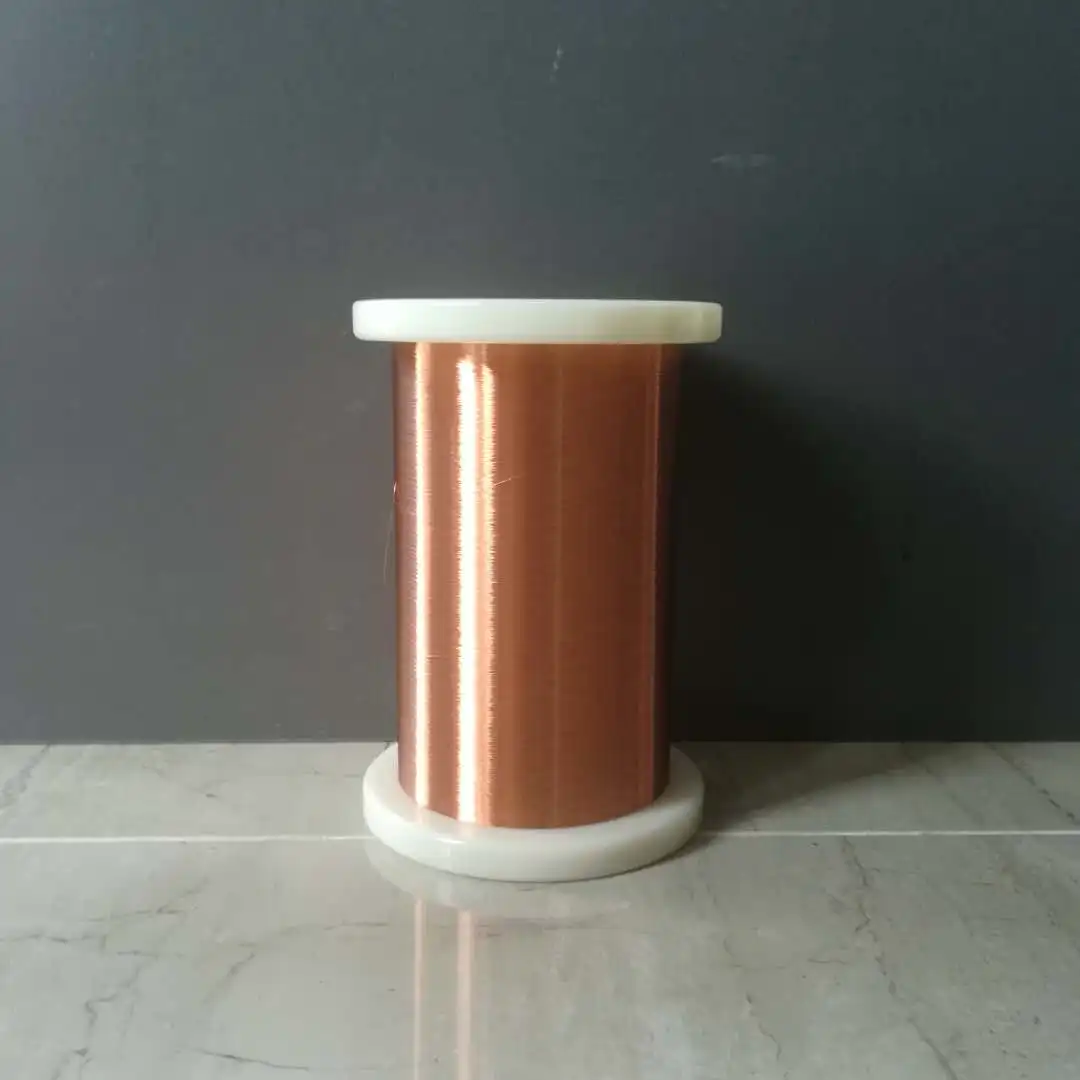

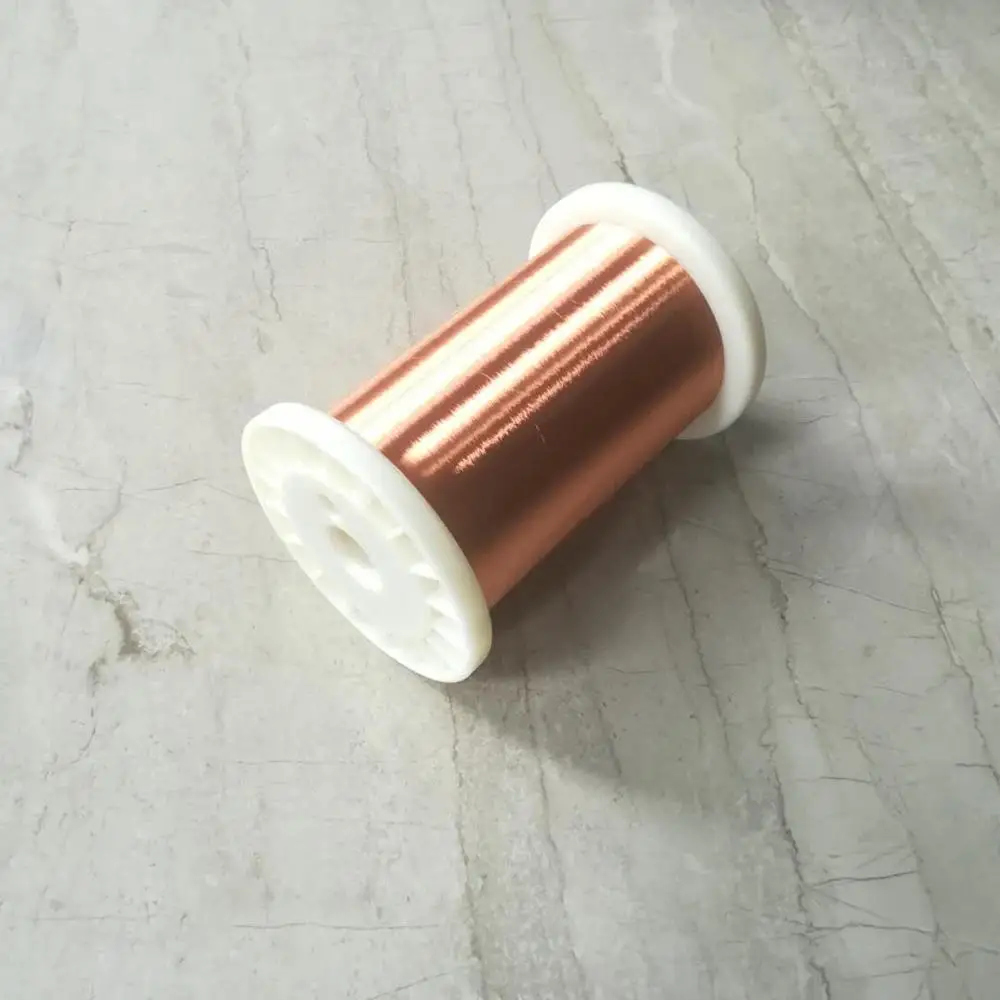

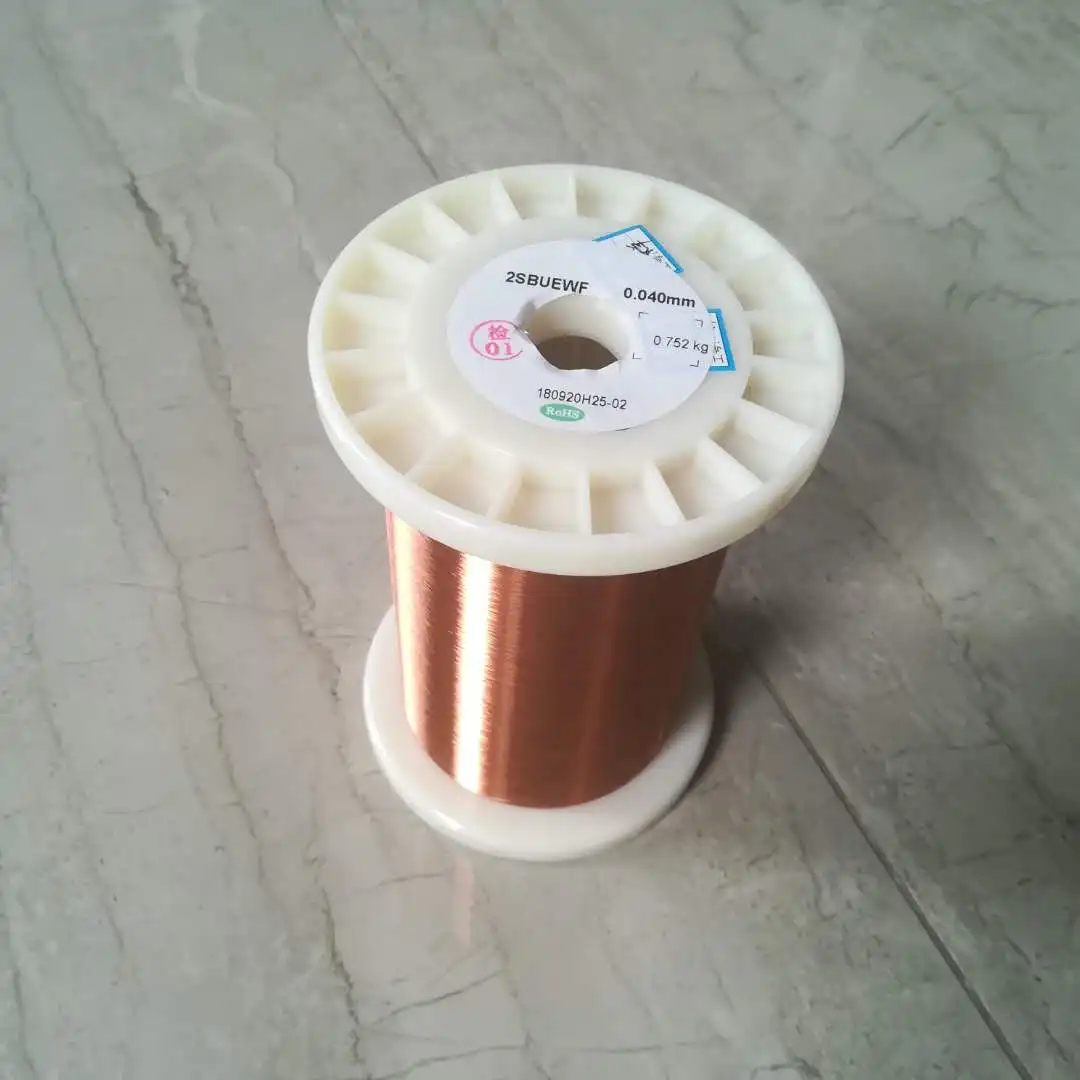

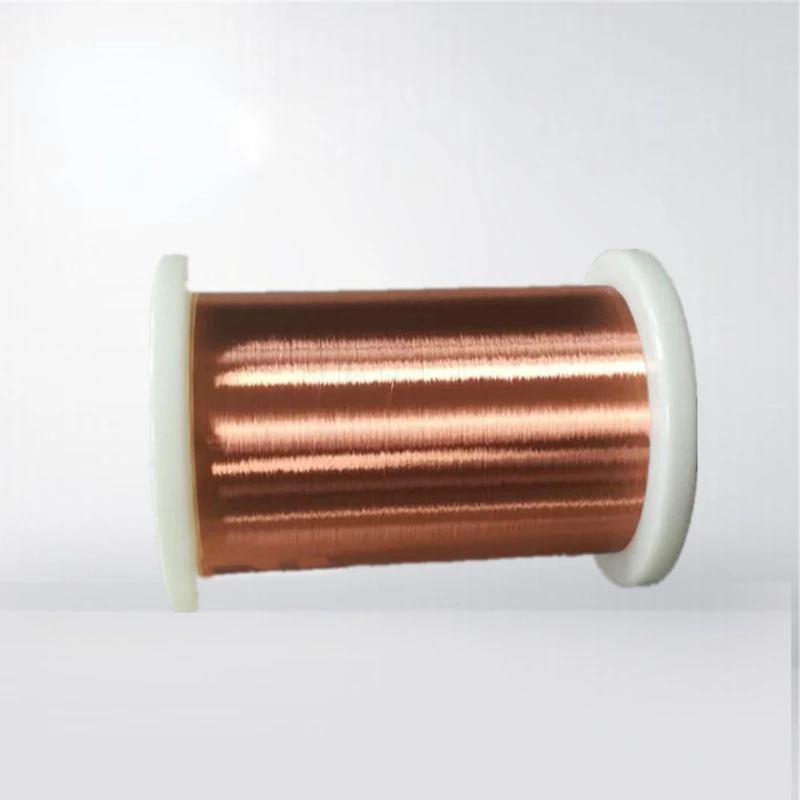

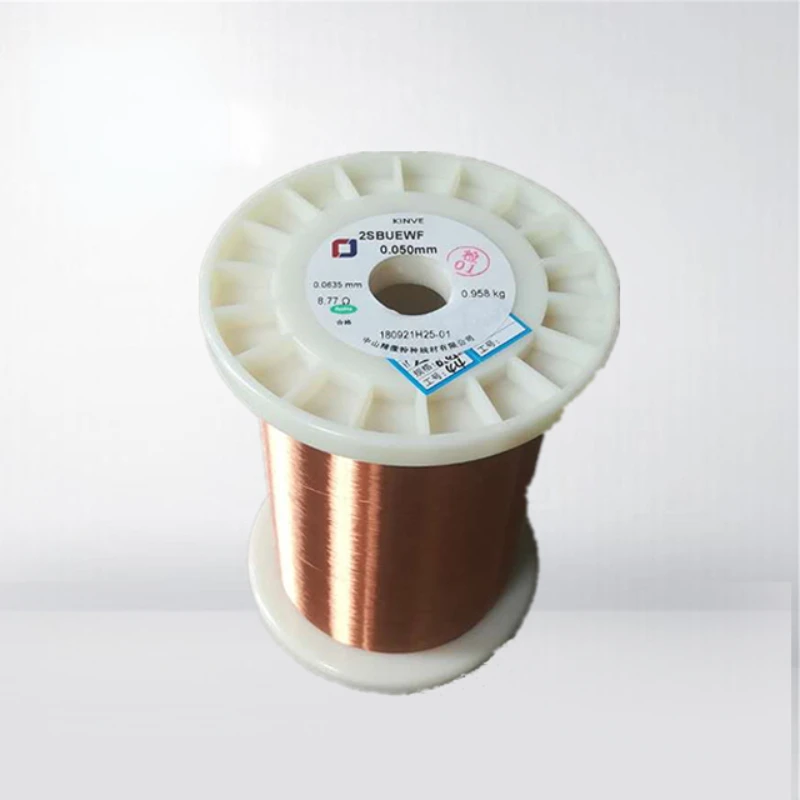

Super fine 0.05mm hot wind self adhesive enameled round copper wire

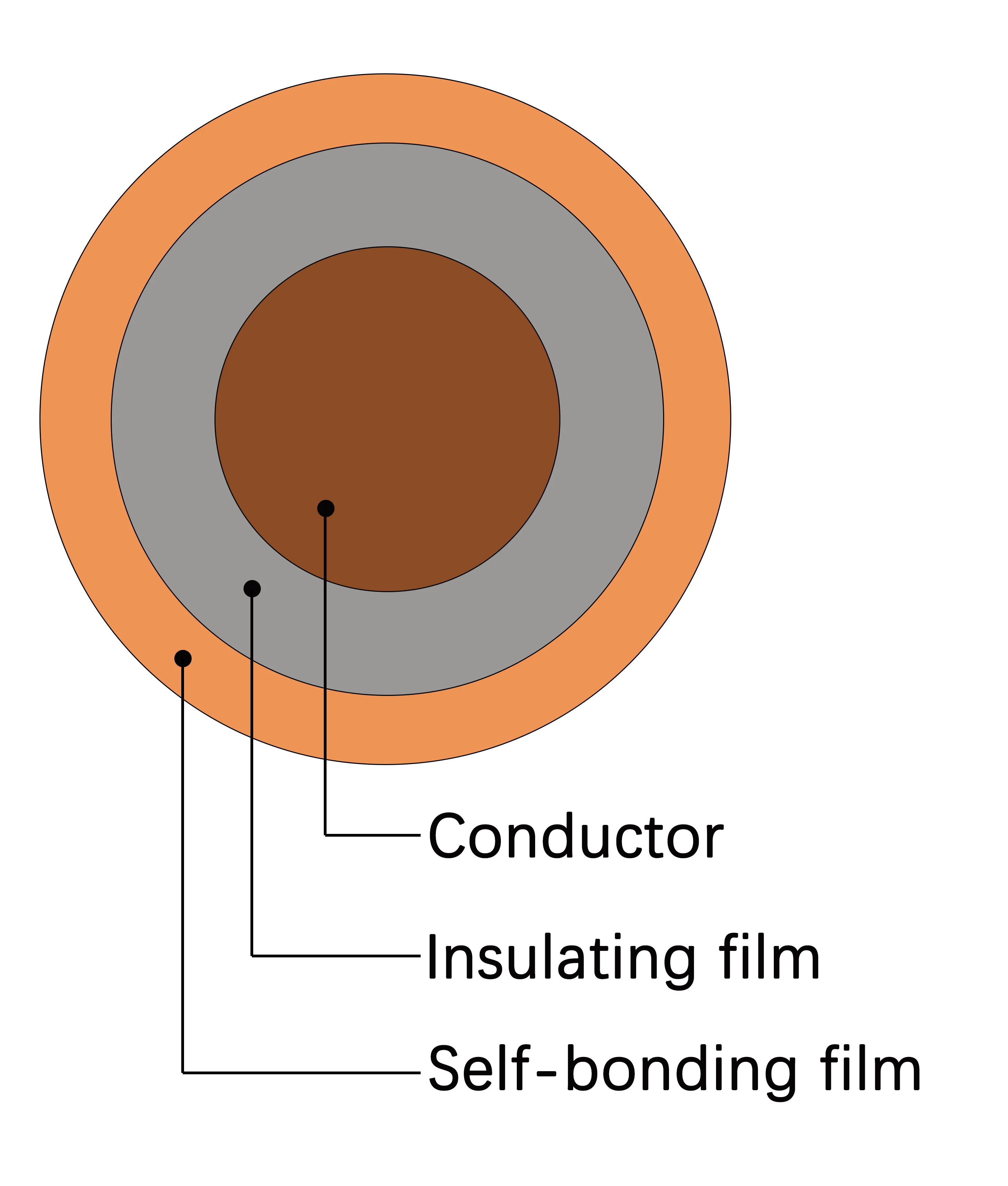

A special type of enamelled wire is selfbonding wire or bondable wire. Selfbonding wire is an enamelled wire as described under:
Enamelled Wire Types, with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
▪Excellent bonding strength ▪Suitable for different bonding strength requiements applications ▪Easily dyable,various coloring options: Natural,Red,Green, Blue,Black
|
Description
|
Thermal Grade(℃)
|
Diameter(mm)
|

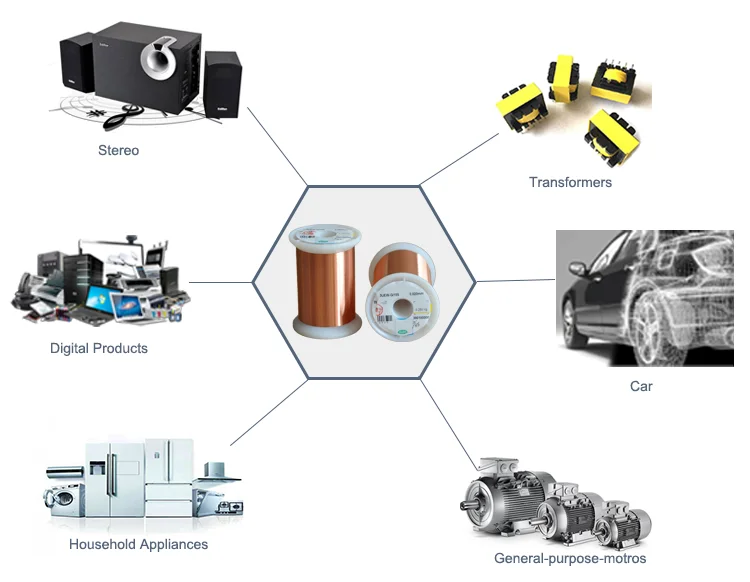

Application
|
|
Solvent Bonding
Polyurethane Enameled Wire (Conductor: copper) |
155~180
|
0.01~0.5
|
1.Speaker coil(i.e.: microphone,earphone,speaker,hearing aid);
2.micro vibration motor (i.e.: focus-driving,coin-type,coreless-type);
3.other electrical and electronics components(i.e.: inductor, watch coil,coin machine coil, buzzer);
4.magnetic head;
5.IC card.
|
|
Heat Bonding
Polyurethane Enameled Wire (Conductor: copper) |
155~180
|
0.01~0.5
|
|
