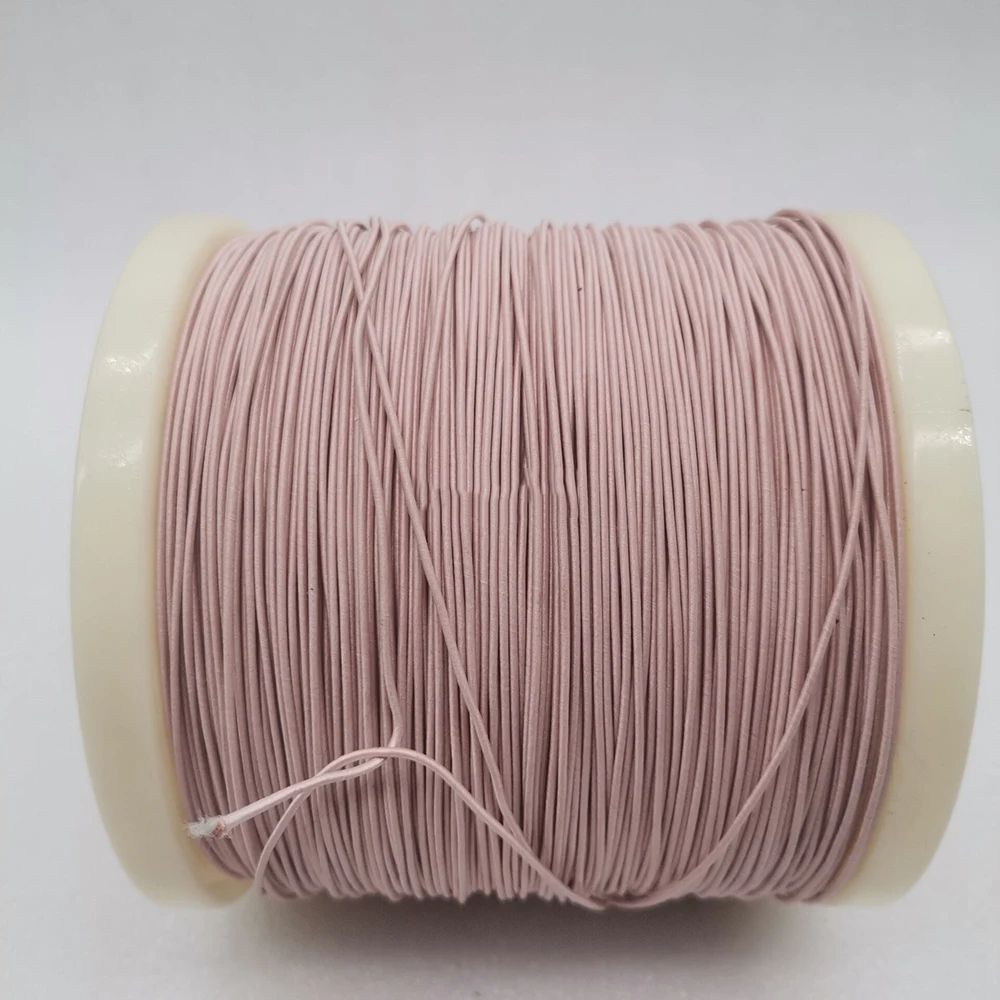

Name: silk covered wire, stranded wire, high frequency wire, high temperature and high voltage wire, film covered wire
Performance: Our products are stranded with high-purity 0.10 enameled wire, with a temperature resistance of 155/180 degrees, and the insulation between each wire is 1KV, according to customer needs
The maximum temperature resistance can reach 230 degrees, and the withstand voltage can reach more than 4KV. Low high frequency impedance, low self-heating, low resistance, solve high frequency skin effect
answer.
Applicable frequency: 15KHZ-300KHZ.
Application: Mainly used in induction heating, electric heating, induction cooker, high-power switching power supply, wireless charging, electric welding machine, transformer and other electrical appliances.
Note: First of all, the wire end must be completely tinned (penetration of the wire is particularly important), and secondly, the wire must not be scratched or sprained to cause paint during use.
The membrane is damaged and cannot be overloaded in the end. When processing the transformer, pay attention to the 4KV isolation voltage between the primary and secondary stages (USDC, USPI,
Silicone cable), where people can touch the wire reel and electromagnetic heating, USDC recommends using USPI or silicone cable.
Performance: Our products are stranded with high-purity 0.10 enameled wire, with a temperature resistance of 155/180 degrees, and the insulation between each wire is 1KV, according to customer needs
The maximum temperature resistance can reach 230 degrees, and the withstand voltage can reach more than 4KV. Low high frequency impedance, low self-heating, low resistance, solve high frequency skin effect
answer.
Applicable frequency: 15KHZ-300KHZ.
Application: Mainly used in induction heating, electric heating, induction cooker, high-power switching power supply, wireless charging, electric welding machine, transformer and other electrical appliances.
Note: First of all, the wire end must be completely tinned (penetration of the wire is particularly important), and secondly, the wire must not be scratched or sprained to cause paint during use.
The membrane is damaged and cannot be overloaded in the end. When processing the transformer, pay attention to the 4KV isolation voltage between the primary and secondary stages (USDC, USPI,
Silicone cable), where people can touch the wire reel and electromagnetic heating, USDC recommends using USPI or silicone cable.

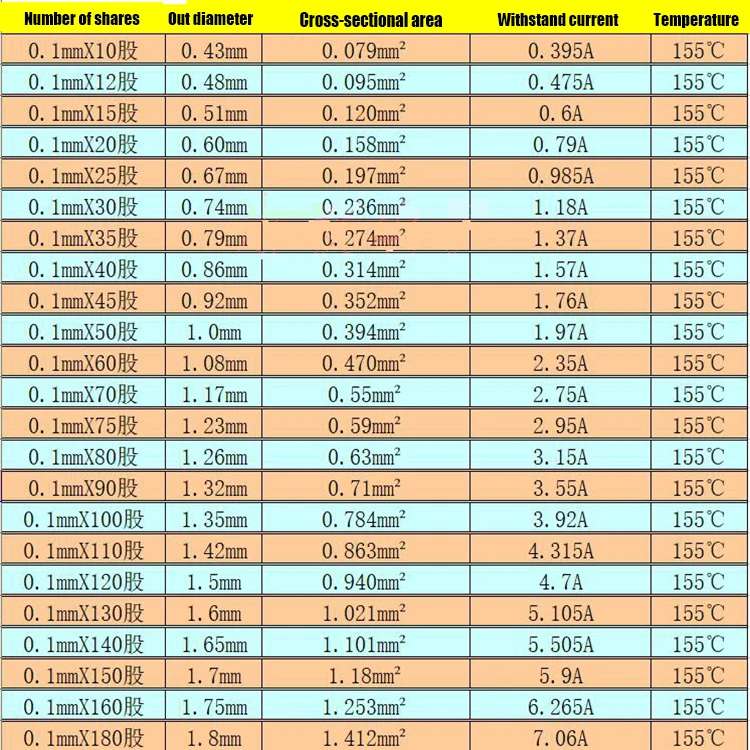

0.1mm represents the diameter of each one wire
0.1mmx4 shares ,out diameter is 0.28mm,0.03mm2
0.1mmx5 shares ,out diameter is 0.31mm,0.04mm2
0.1mmx6 shares ,out diameter is 0.34mm,0.05mm2
0.1mmx7 shares ,out diameter is 0.37mm,0.05mm2
0.1mmx8 shares ,out diameter is 0.40mm,0.06mm2
0.1mmx9 shares ,out diameter is 0.42mm,0.07mm2
0.1mmx10 shares ,out diameter is 0.44mm,0.08mm2
0.1mmx11 shares ,out diameter is 0.46mm,0.09mm2
0.1mmx12 shares ,out diameter is 0.48mm,0.09mm2
0.1mmx14 shares ,out diameter is 0.52mm,0.11mm2
0.1mmx16 shares ,out diameter is 0.56mm,0.13mm2
0.1mmx18 shares ,out diameter is 0.59mm,0.14mm2
0.1mmx20 shares ,out diameter is 0.63mm,0.16mm2
