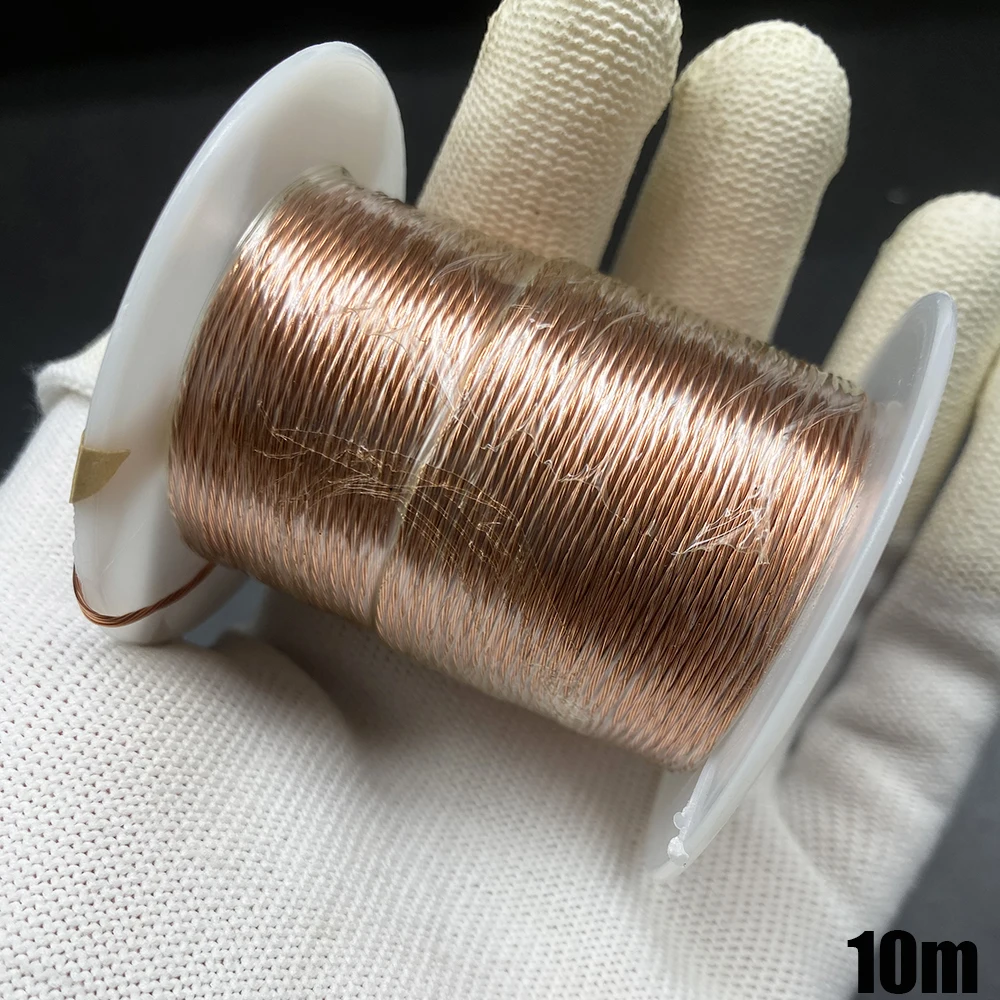

Multi-strand Enameled Wire Stranded High-frequency Copper Wire 0.2mm Multi-strand Litz Cable Transformer Wireless Charging Line

Uses: wireless charging, induction cooker, switching power supply, etc.

Multi-strand enameled wire, also known as Mylar wire, Litz wire, high-frequency wire, is made of high-purity electrolytic copper, drawn and painted, and then bundled by advanced technology. It has the characteristics of good softness and high roundness in appearance. It is effective Reduce the skin effect of high-frequency circuits and greatly reduce the heat generated by high-frequency impedance. Mainly used in high-power switching power supply, wireless charging, high-power induction cooker, welding machine transformer and other fields.
voltage : 1000V
temperature :155 degree



0.2mmx 5 stranded , out diameter is 0.58mm , 0.16 mm2 sqaure , current 0.8A

0.2mmx 6 stranded , out diameter is 0.64mm , 0.19 mm2 sqaure , current 0.95A

0.2mmx 7 stranded , out diameter is 0.68mm , 0.22 mm2 sqaure , current 1.1A

0.2mmx 8 stranded , out diameter is 0.73mm , 0.25 mm2 sqaure , current 1.25A

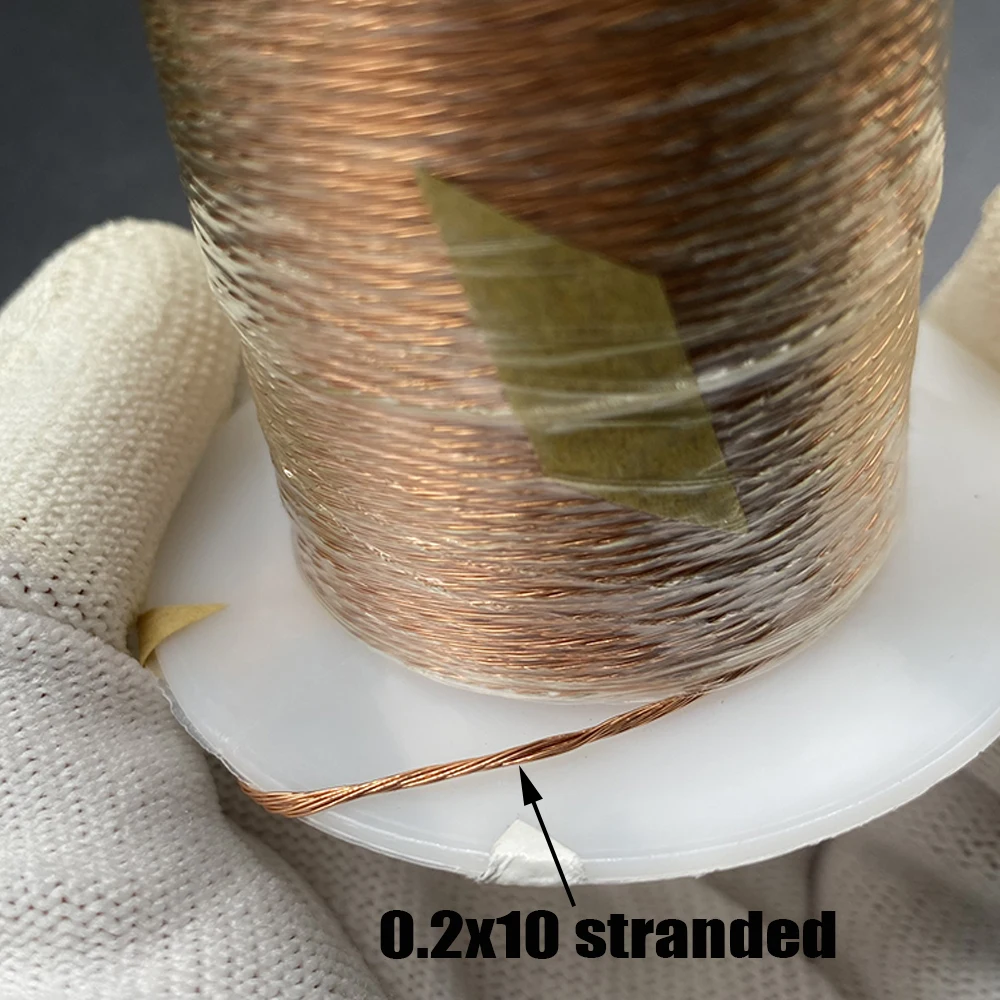

0.2mmx 10 stranded , out diameter is 0.82mm , 0.31 mm2 sqaure , current 1.57A

0.2mmx 14 stranded , out diameter is 0.97mm , 0.44 mm2 sqaure , current 2.2A

0.2mmx 15 stranded , out diameter is 1.00mm , 0.47 mm2 sqaure , current 2.35A

0.2mmx 16 stranded , out diameter is 1.04mm , 0.50 mm2 sqaure , current 2.5A

0.2mmx 20 stranded , out diameter is 1.16mm , 0.63 mm2 sqaure , current 3.15A
