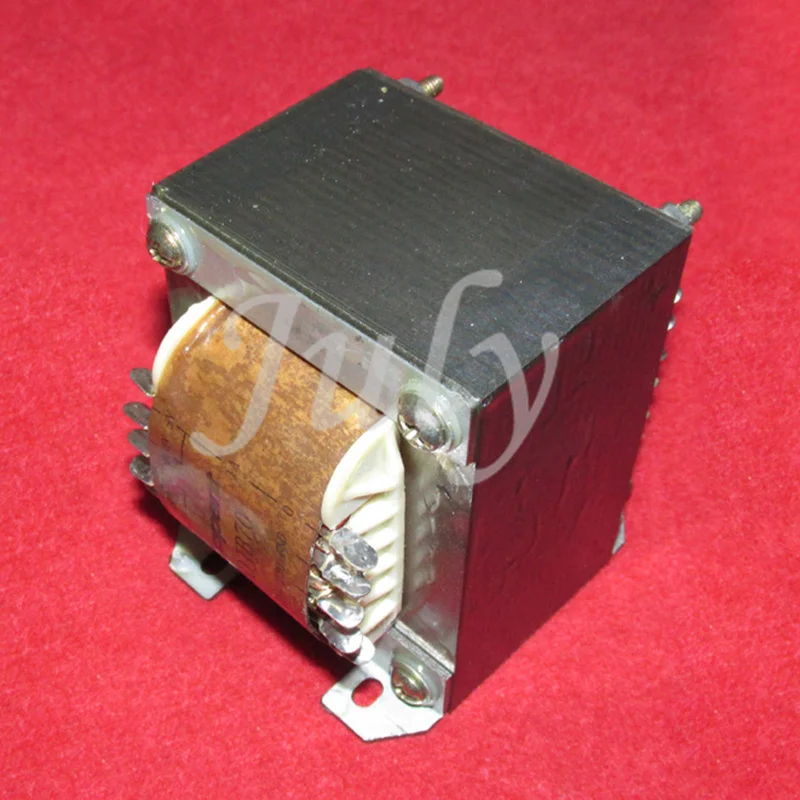

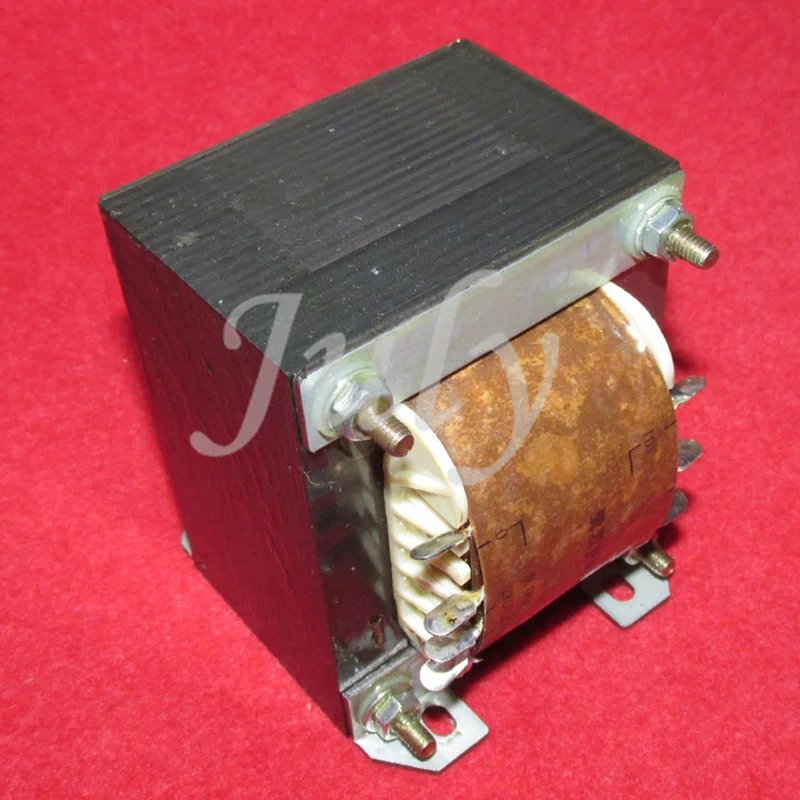

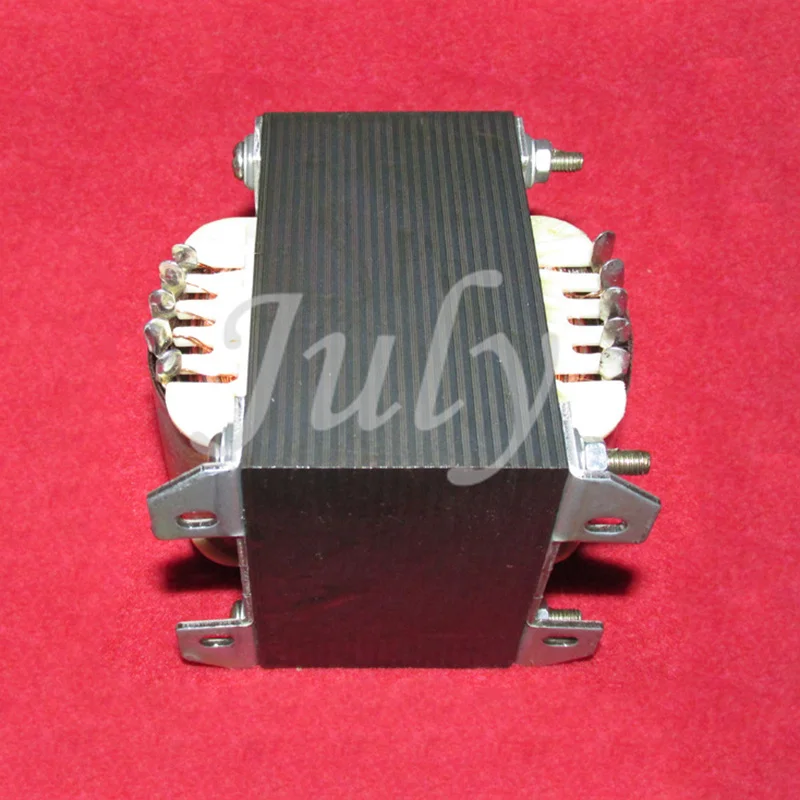

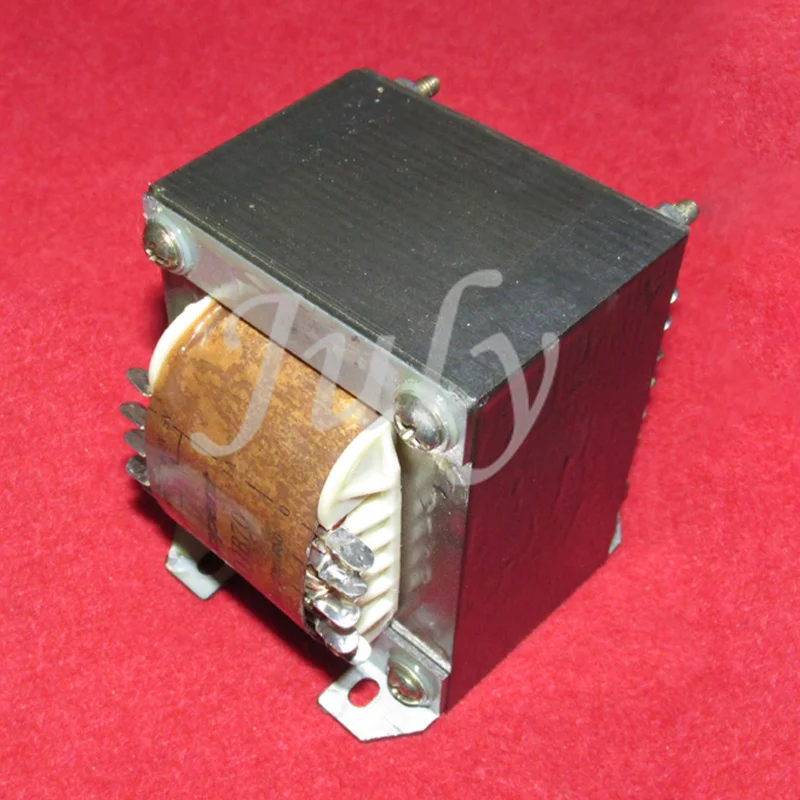

Le Pan DJB70 tube machine multi-purpose 70W power transformer: suitable for tube machine use. All-copper enameled wire, EI 76 core, power 70W, vertical fixed, exquisite workmanship, as if it were reproduced by Shanghai Radio No. 2 + 7 Factory transformer.
Transformer core size: height 76 width 64 thickness 45mm. Input: 0～220V～230V, GND shielded outgoing wire. Output: 0～235V～250V～275V～300V 80mA, 0～5V ～6.3～8V～10V 3A, 0～5V～6.3V 1A, 0～5V～6.3V 2A, heavy, weighing about 1.7Kg.
H14 core material
Note: After receiving the transformer, use a meter to measure the continuity and quality of the wire package. First pass the 220V no-load measurement. The other solder joints are not soldered and not connected. After the transformer is no problem, weld other winding pads. In addition, Lepan transformer copper soldering pins are tin-plated and do not need to be scraped. When using, the soldering iron can be directly tinned, and the surface paint film of the terminal is naturally removed at high temperature.
Statement: Due to storage, transportation, packaging and other reasons, the surface of the transformer will be scratched, painted off, and slightly rusted. Because the mains voltage is not standard 220V (mostly more than 230V), the measured voltage value will be different due to different test conditions and equipment, and the voltage marked on the transformer will be different. There are errors in the actual measurement.
