weight：48.5gram
Installation height：Height above board30.5mm
length：32.2mm
width：28mm(Direction of two rows of feet）
Pin row spacing：22.5mm
Foot distance：5mm
Number of pins：6+6（Each row6Pins）
The pin function is shown in the figure

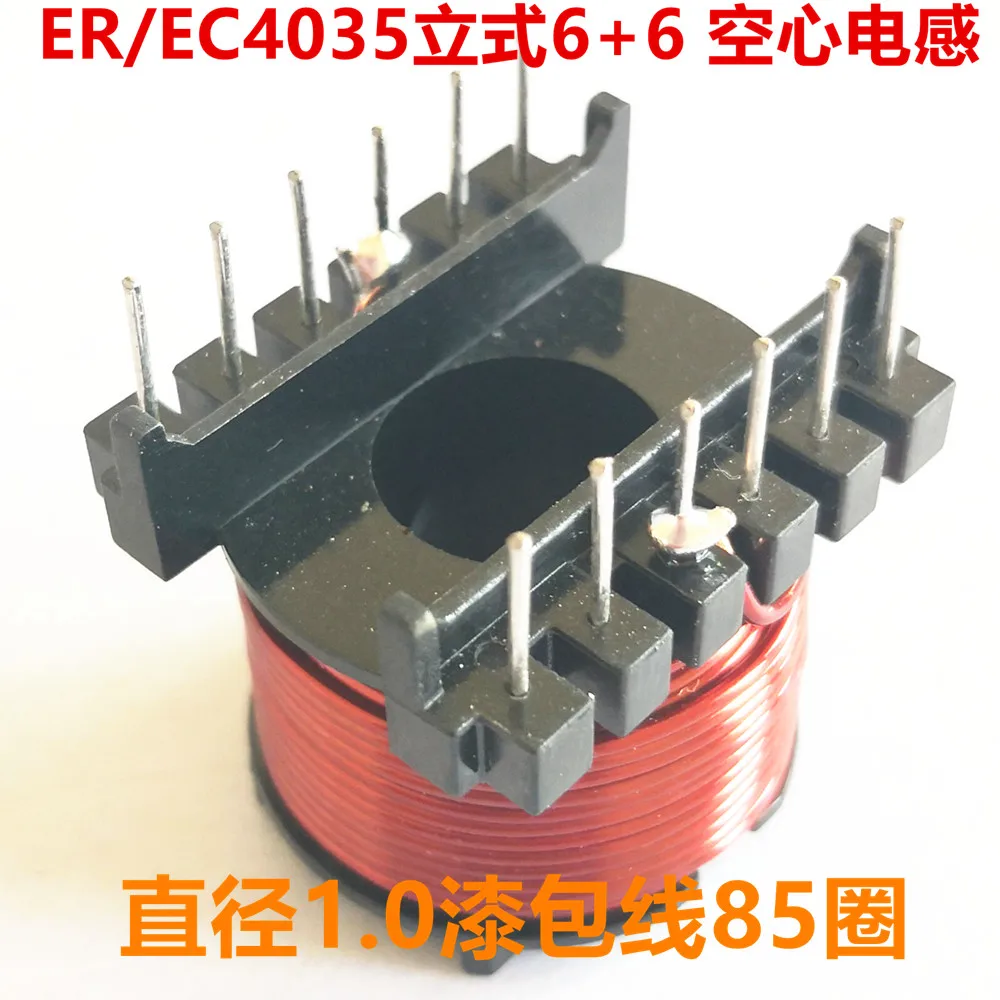

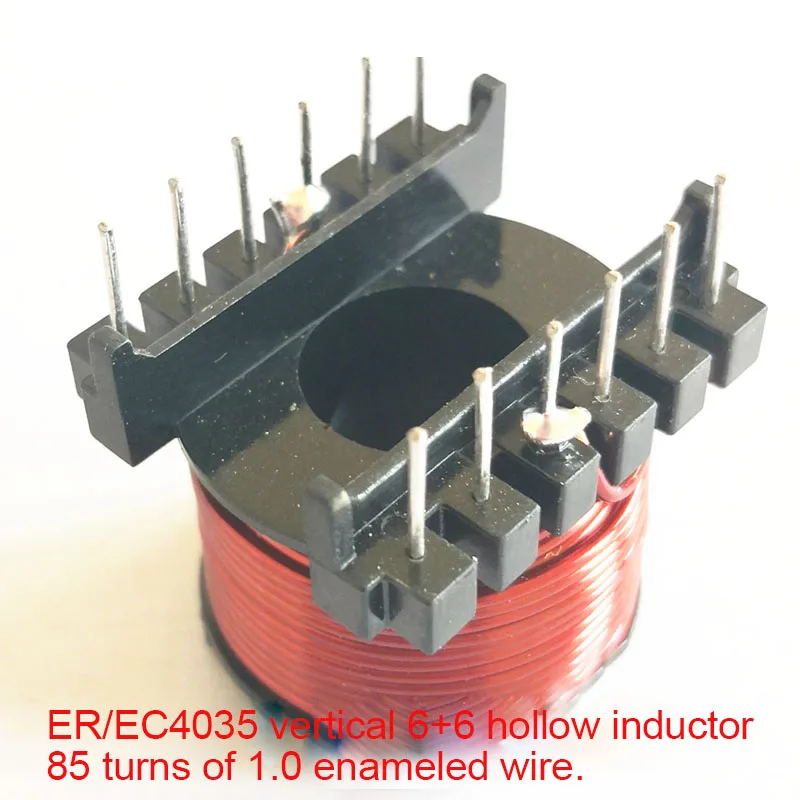

Enameled wire：Outer diameter of pure copper1.0mm（Diameter of copper core without lacquer skin）
Number of turns：85circle，
