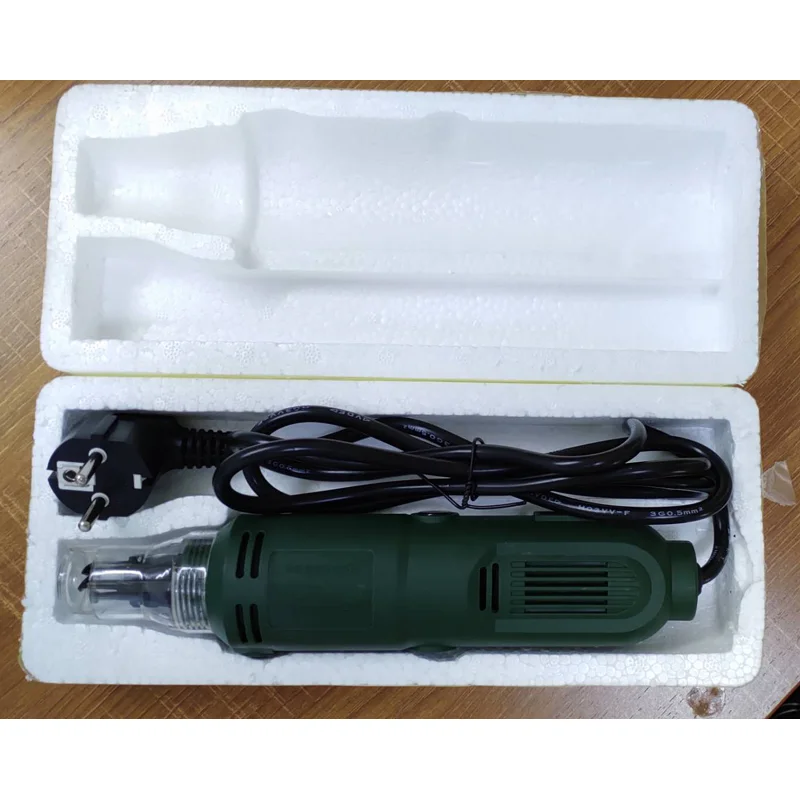

Packing
Safty Packing.
Simple Operating
Operation:
(1)Extend the enameled wire end to be scraped into the center of the knife holder, press the power start switch (handheld) or foot pedal governor (fixed), and the motor will rotate immediately.
(2)Move the enameled wire in the opposite direction of the axis until the end of the enameled wire can be scraped off.
(3)Release the power button switch (handheld) or relax the governor (fixed).
(4)Replacement work, repeat the above steps.
Product Details

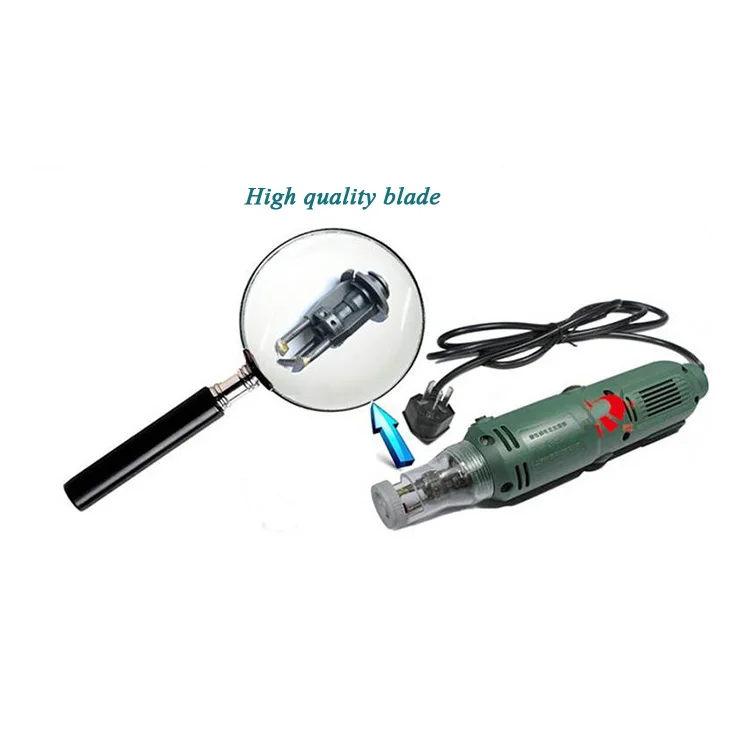

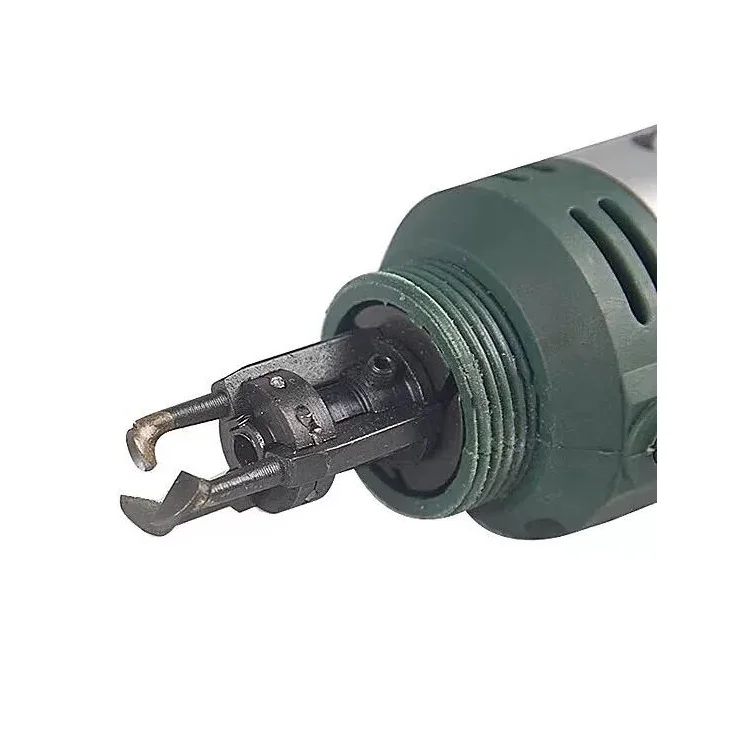

Replaceable blade
Model: DF-8
Wire diameter: 0.3-3.0 mm
Stripping length: 2-50 mm
Power: 75 W

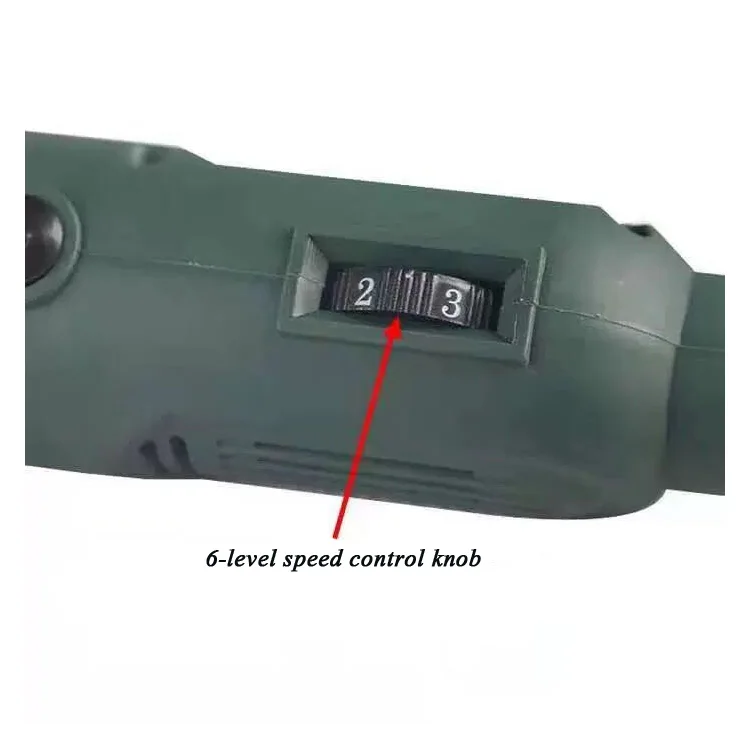

Speed: adjustable
Net Weight: 0.75 kg

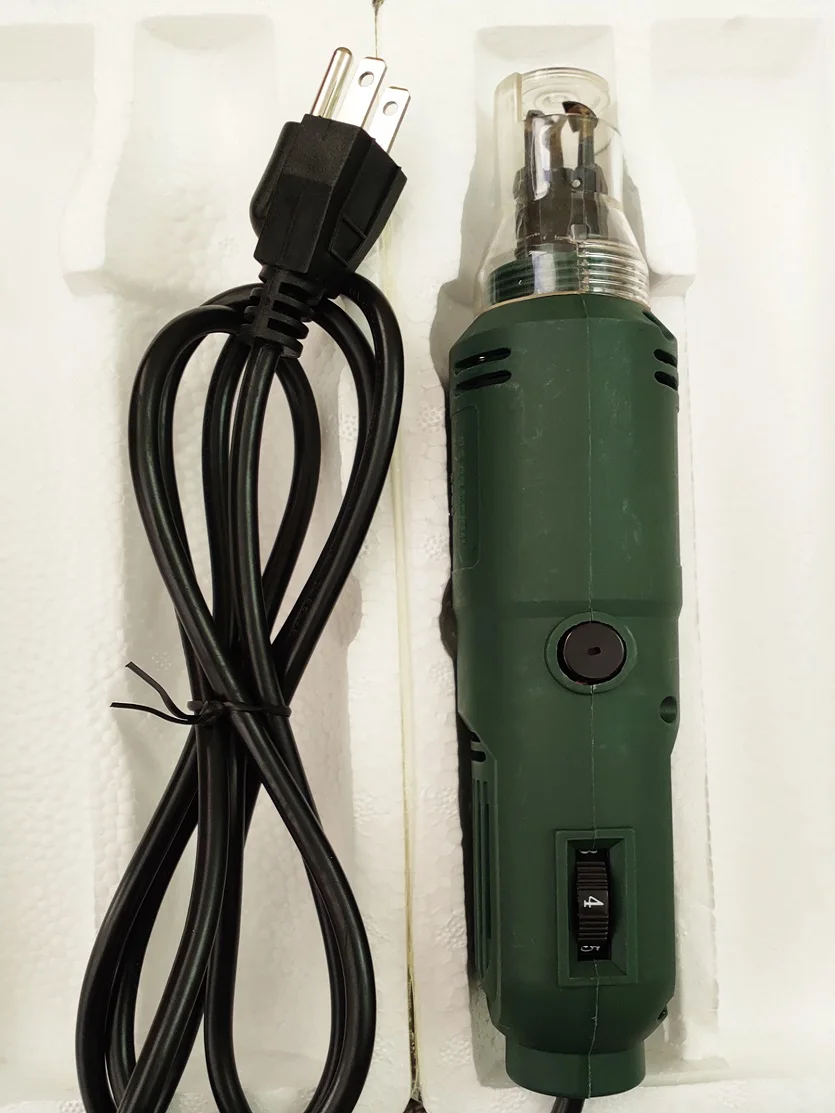

Available power plug: US plug, EU plug, Chinese plug. Other plug should use a converter.

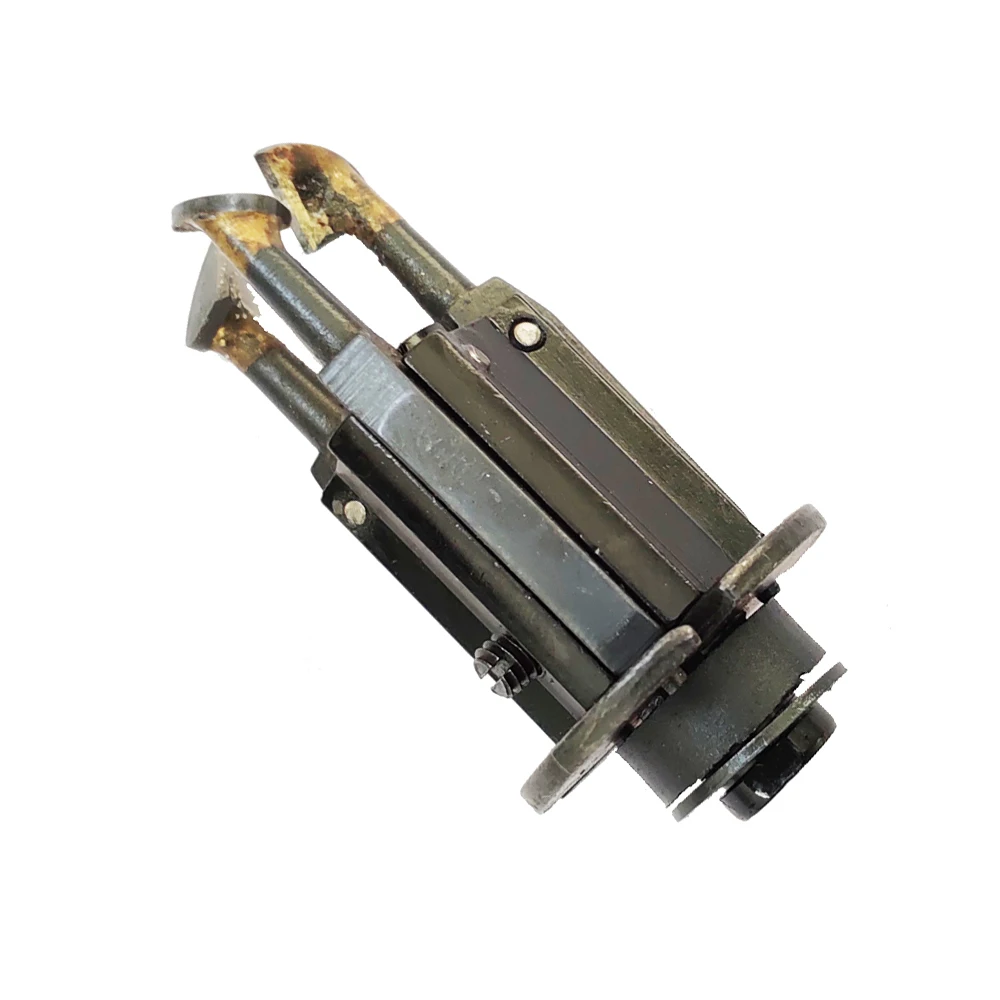

If you need spare blade, please click below picture:
Application

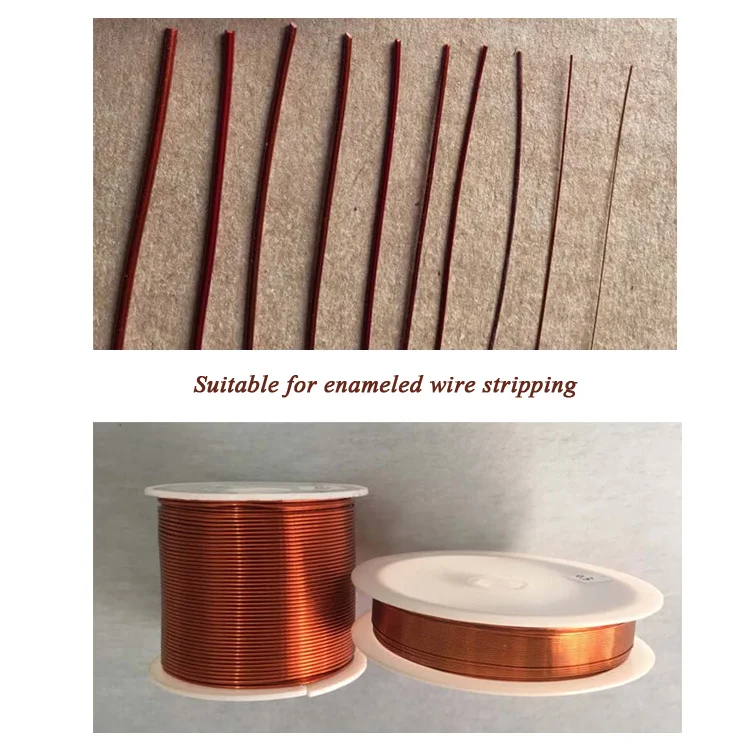

For Removing the Enamel/Paint of Motor Wire, Magnet Wire, Enameled Wire.
