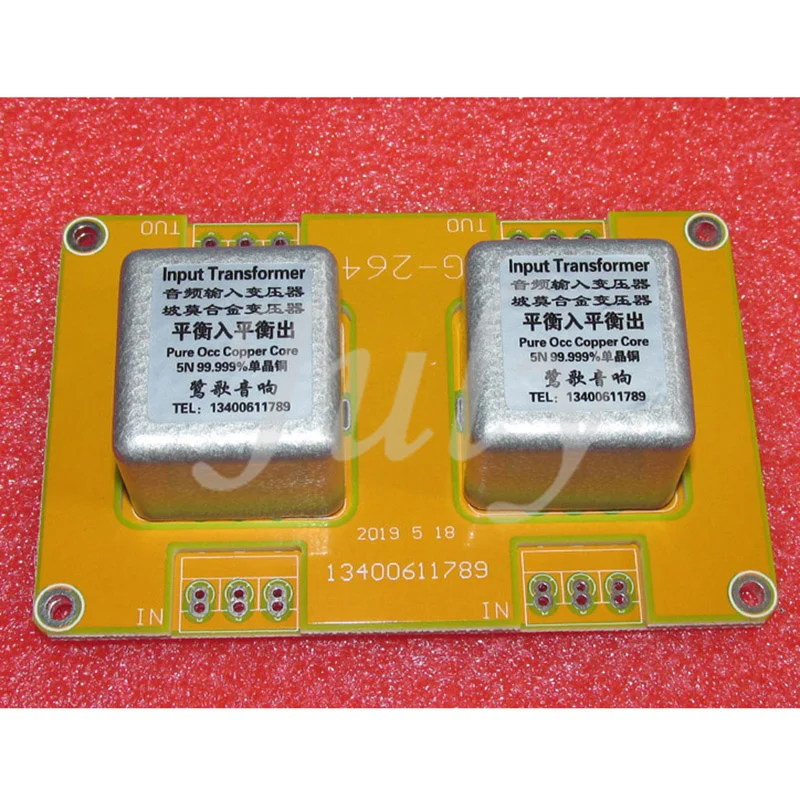

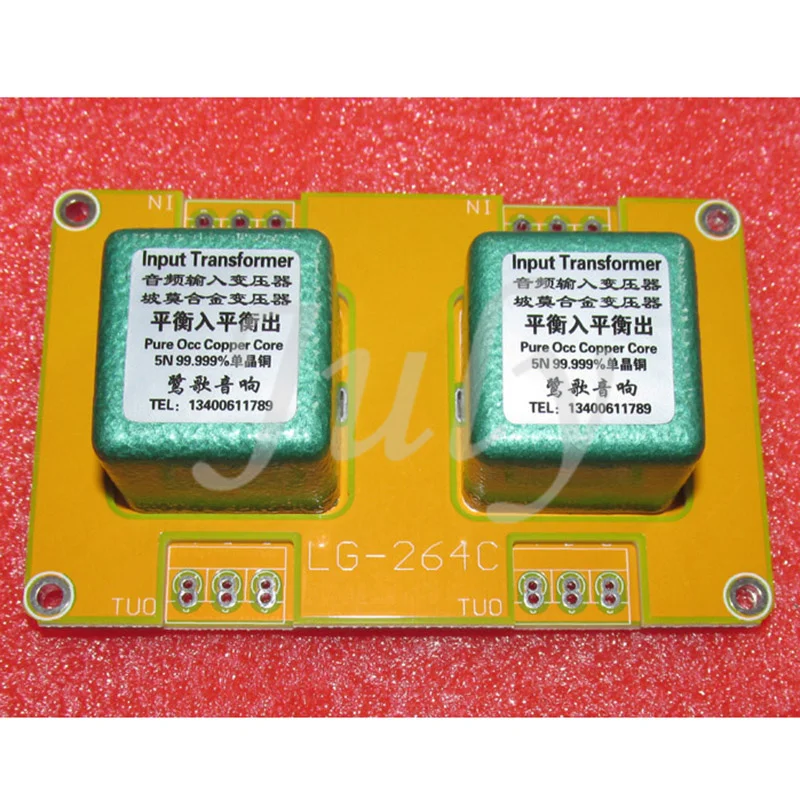

5N single crystal copper OCC enameled wire wound US Jensen 600: 25K audio transformer replica.
600Ω: 25K transformer, about 6.5 times the signal boost amplification, balanced input balanced output, of course, it can also be used for single-ended input and single-ended output.
The LG AUDIO series Permalloy audio transformers produced by our company and the active front stage, passive front stage, signal converter, selector, volume controller, etc., have been recognized and praised by many users.
At present, the market is chaotic, and fish-eye mixed beads are fake. The so-called imported 6N single crystal copper enameled wire appears on the market. The domestic ordinary enameled wire is used to counterfeit imported 6N single crystal copper enameled wire. It is really a brandless, unqualified, and non-certified product.
The winding of transformers with authentic Shanghai Jixun series 5N single crystal copper enameled wire materials in this department has significantly improved the effect, and the sound quality has been greatly improved and improved, which is different from counterfeit products.
The Permalloy series audio isolating transformer wound with Jixun series 5N OCC single crystal copper enameled wire. As long as your playback equipment is high enough, you can listen to it if you know it. You can clearly hear the difference, especially with AB fast switching comparison. , Immediately heard the difference, for ordinary equipment, first brother enthusiasts and those with wooden ears, do not make fun of it.
OCC single crystal copper wire is used in the production of audio wire, which is a major breakthrough in the audio wire manufacturing industry in recent years. Scientific experiments prove that single crystal copper is a kind of high-purity oxygen-free copper. The entire copper rod consists of only one grain, and there is no "grain boundary" between grains. "Grain boundary" will reflect and refract the passing signal, cause signal distortion and attenuation, and therefore have high signal transmission performance.
5N OCC single crystal copper enameled wire is obviously different from general enameled copper wire. It is not comparable to ordinary OFC copper and low-purity copper enameled wire, especially for sound, which has a positive impact on sound quality. 5N OCC single crystal copper enameled wire has excellent performance for audio signal cattle, black MC phono booster cattle, amplifier input and output cattle, passive booster cattle, audio signal lines, etc.
Casting undergoes special heat treatment, so a single-crystalline conductor can be obtained, and each crystal can extend more than one hundred meters. Therefore, there is only one crystal grain in the length of practical application, so there is no so-called "grain interface". In the signal transmission, there is no need to pass through the "grain boundary" between the crystal grains. Because the signal is easier to penetrate and conduct, the loss is extremely low, which can be called a copper wire with a perfect CP value.
5N OCC features: Unidirectional crystalline or high-purity single crystalline composition with increased purity multiple times, less segregation and low impurities. The average crystal length is 125m, which is more than 50-100 times that of ordinary oxygen-free copper (OFC); the cost is also more than 8-15 times that of oxygen-free copper (OFC). Because the crystalline cross section of 5N OCC wire is theoretically zero, the signal can be kept intact and lossless during transmission.
The order of metal conductivity from strong to weak is: silver, copper, gold, aluminum. The top conductive metals are: conductivity coefficient; silver — 0.016, copper — 0.0172, gold — 0.023, and aluminum — 0.028. Silver and copper are both excellent electrical conductors, with a conductivity difference of only 0.0012, and the difference in resistivity is very small.
Some merchants once said that the resistance of single crystal copper enameled wire is 8% to 13% lower than that of ordinary copper enameled wire, which is unscientific. This department consulted experts in metal materials from single crystal copper manufacturers, and also compared a variety of single crystal copper enameled wires / single crystal copper silver-plated enameled wires with ordinary enameled wires. It was found that there is almost no difference in copper resistance. Ordinary three and a half digital multimeters are almost the same. No difference could be detected. Therefore, it is unscientific to say that the resistance of single crystal copper enameled wire is 8% to 13% lower than that of ordinary copper enameled wire. It is purely misleading and self-deceiving.

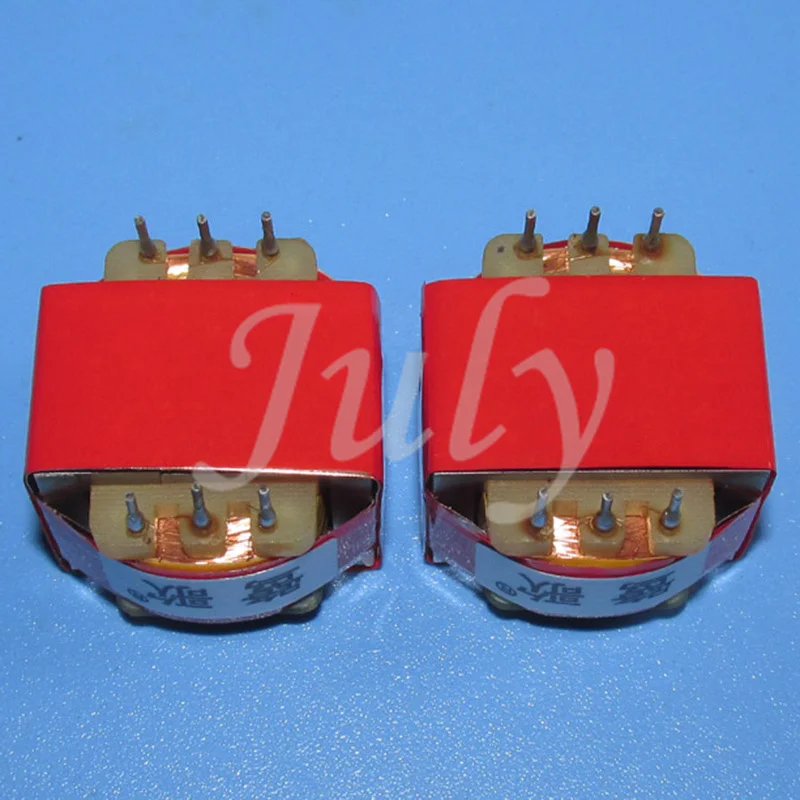

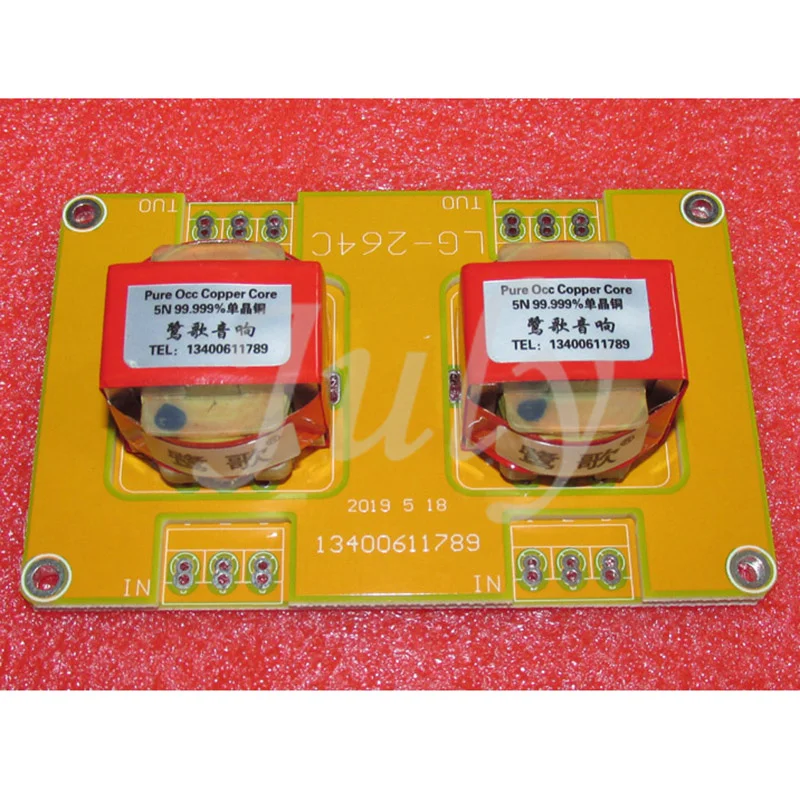

The new 5N OCC single crystal copper enameled wire transformer 600Ω: 25K transformer, about 6.5 times the signal boost amplification, balanced input balanced output, of course, can also be used for single-ended input and single-ended output. The core thickness is 12.5mm, the wire diameter is 0.06mm, and the AC signal current is 25mA. Measured frequency response: 20Hz ~ 86KHz -2DB.
Another iron core stack thickness is 16.5mm 5N OCC single crystal copper enameled wire 600 ohm: 25K transformer, primary inductance 110-120 henry, copper resistance is about 1567-1573 ohm. The secondary inductance is 4800-4900 henry, and the copper resistance is about 2690 ohms. Measured frequency response: 5Hz-67KHz -3db.
The products of this department are constantly being upgraded. New products are constantly being introduced, surpassing self-confidence, and surpassing peers.
5N Cu + Ag OCC single crystal copper silver-plated enameled wire transformer 10K: 10K transformer
Volume of finished machine and shell size of American God of War JENSEN JT-11P-1HPC transformer
Similarly, the length of 110mm × depth 65mm × height 32mm, the iron shell effectively shields external pollution such as electric fields and stray magnetic fields, making the background quiet. Gold-plated RCA socket with excellent contact performance.
Finished machine with stack thickness of 16.5mm.
How to use: The machine is used for CDs, decoders, amplifiers, etc. There is a use logo on the case, two-channel signal input, and output through the internal transformer. The operation is simple and convenient, and the volume is small.
************************************************** ************************
