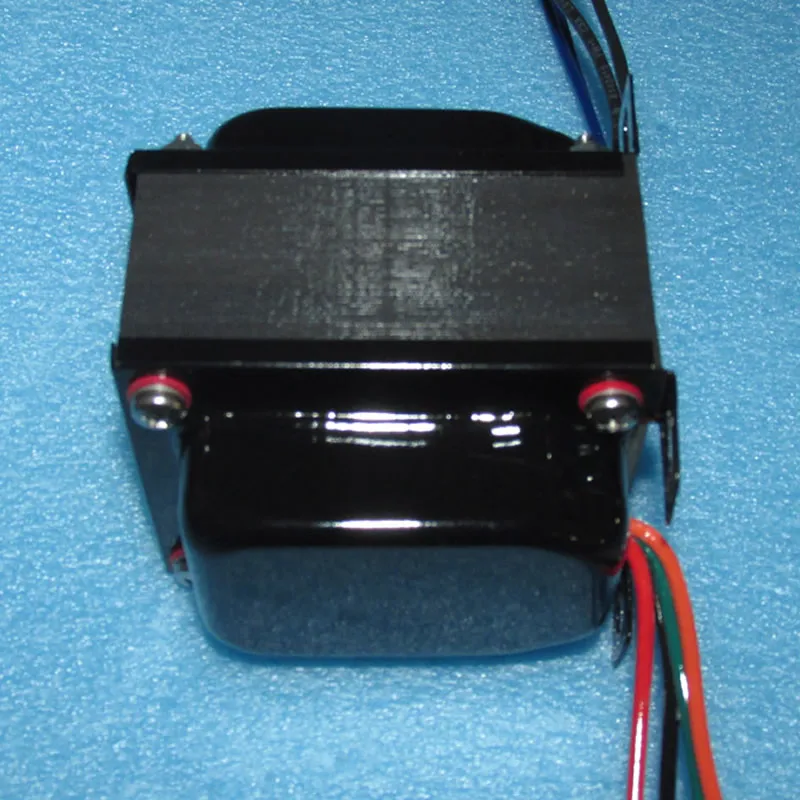

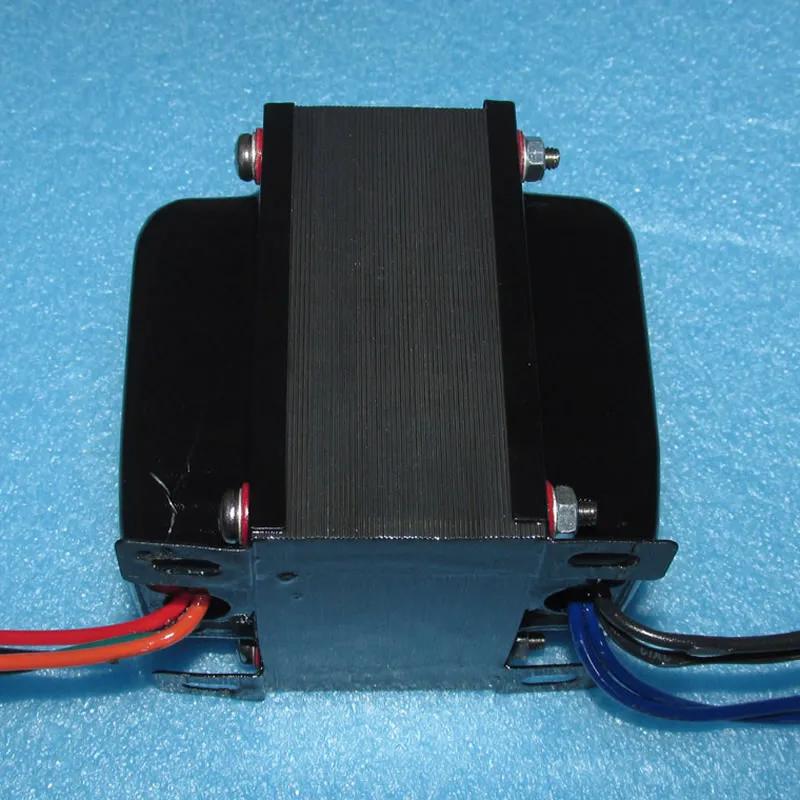

Power transformer for electronic tube machine, power 50W 250V0.1A 6.3V 4A EI76X40MM Z11 iron core pure copper enameled wire winding, weighing about 1.65KG.
The core size EI76 has a stack thickness of 40mm and a high-end appearance. The imported Z11 silicon steel cores are inserted one by one. The paint is dipped and insulated. The power voltage is normal, there is no vibration and noise, and the transformer temperature rise is low and quiet.

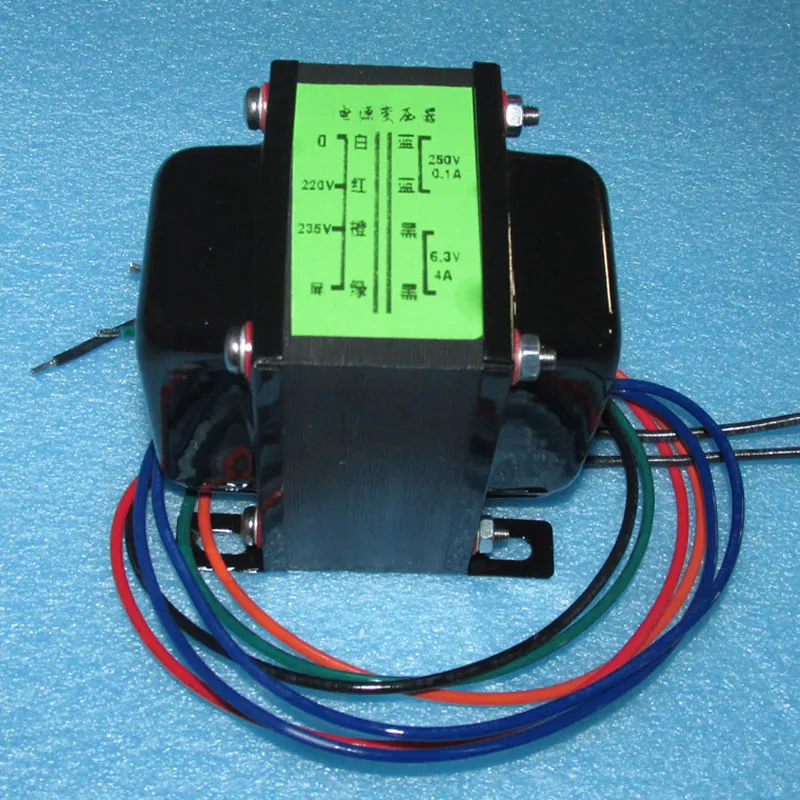

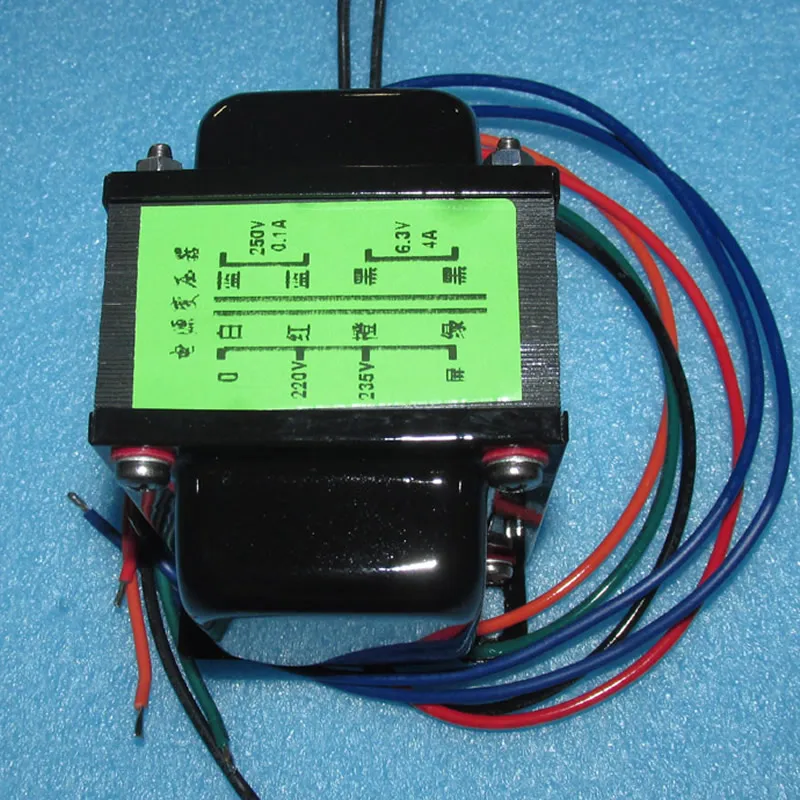

Transformer primary input voltage 220V / 235V optional, shield lead between primary and secondary. The secondary voltage is 250V0.1A 6.3V 4A. Can also be customized according to requirements.
The input voltage is based on the actual line usage.
There are several ways to fix the transformer according to the assembly and fixing machine.
Red Bull clip fixed,
The top cowl is fixed,
Transformers have single-sided and double-sided outlets depending on the assembly and fixing machine.
Voltage can also be customized according to requirements!
