The Quad II KT66 amplifier uses a 170W power transformer.

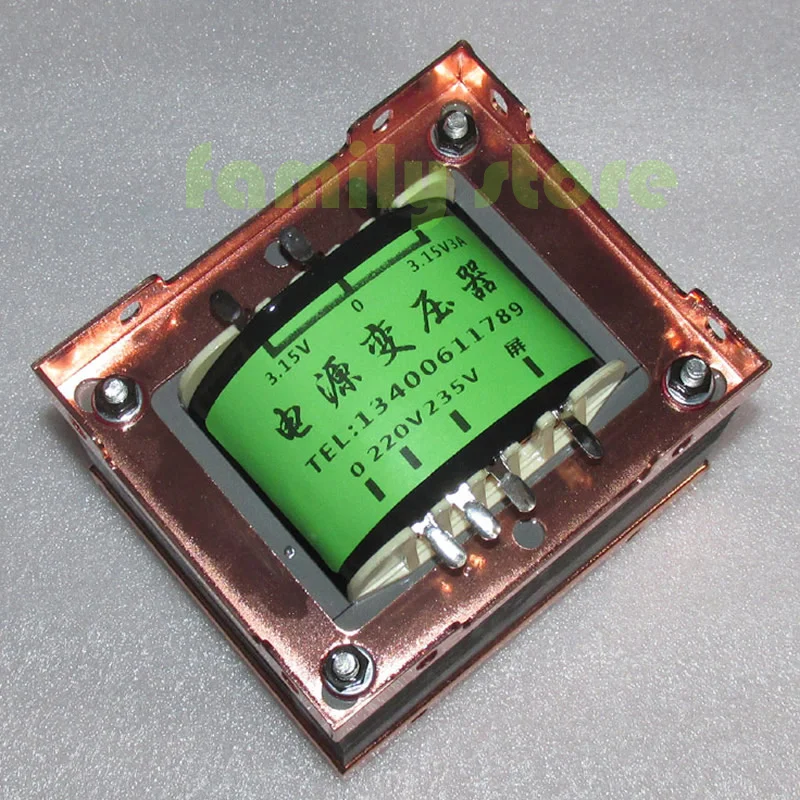

Primary voltage: 0-220V-235V, shielded.

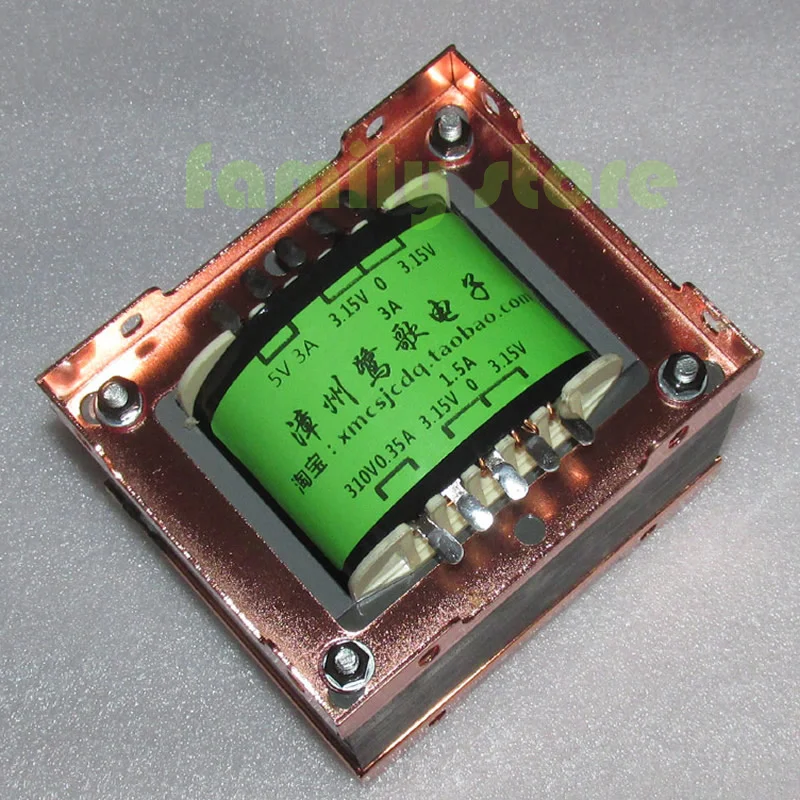

Secondary voltage: 310V 0.35A, 5V 3A, 3.15V-0-3.15V 3A, 3.15V-0-3.15V 3A, 3.15V-0-3.15V 1.5A, weighs about 3.8 kg / piece.

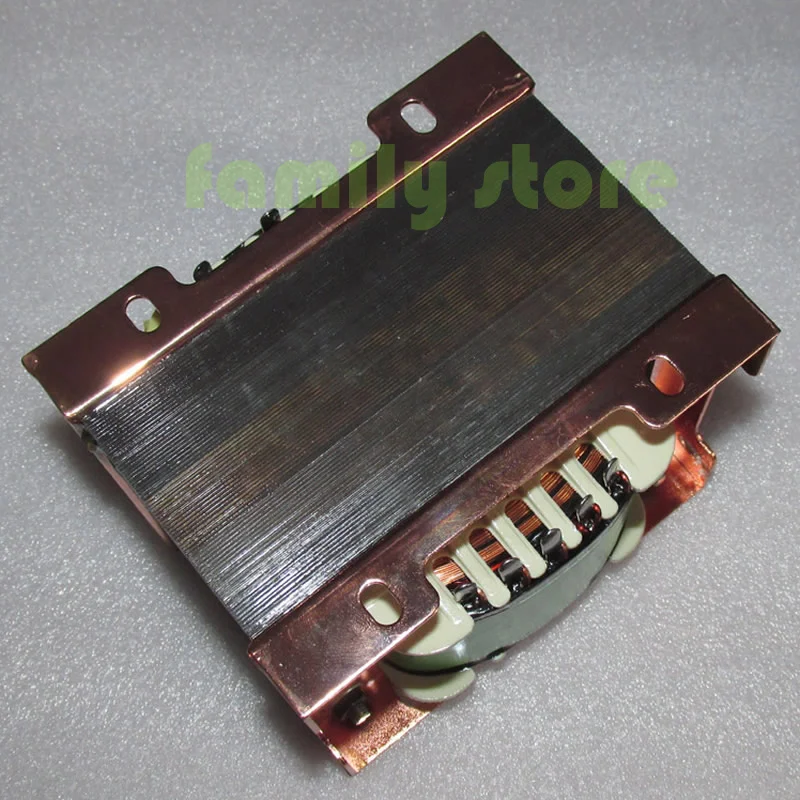

Z11 core, 105 pieces after stacking 50mm. Red Bull bracket installation. Exquisite craftsmanship, high quality oxygen-free copper-copper enameled wire, nylon skeleton, dipping process, protection transformer core and wire package.
The design of the power transformer is strictly calculated, and the load is working normally. There is almost no noise, so the interference to the line system is at least inaudible. The transformer winding is made of high-quality oxygen-free copper enameled wire, which makes full use of the wire package space, does not cut corners, the transformer primary and secondary shielded wiring design, the welding lead extraction process, plus the Red Bull bracket fixed, the appearance is graceful. 1000V high voltage 1 minute test. Can also be ordered.
The normal working temperature rise is not higher than 25 degrees ( temperature + ambient temperature), and there is a marked lead function on the transformer.
When designing the power transformer, the load voltage is calculated according to the load, and the wire package space is fully utilized. The power is not cut and the material is cut, the primary and secondary of the transformer have a shielded wiring design, and the soldering lead is pulled out of the process or the lead wire, and the appearance is graceful.
1000V high voltage 1 minute test. There is almost no noise in normal operation, which reduces interference to the line. Normal use for one year
There are several fixed ways for the transformer to be fixed according to the assembly.
Bottom hole open hole horizontal top cow cover transformer,

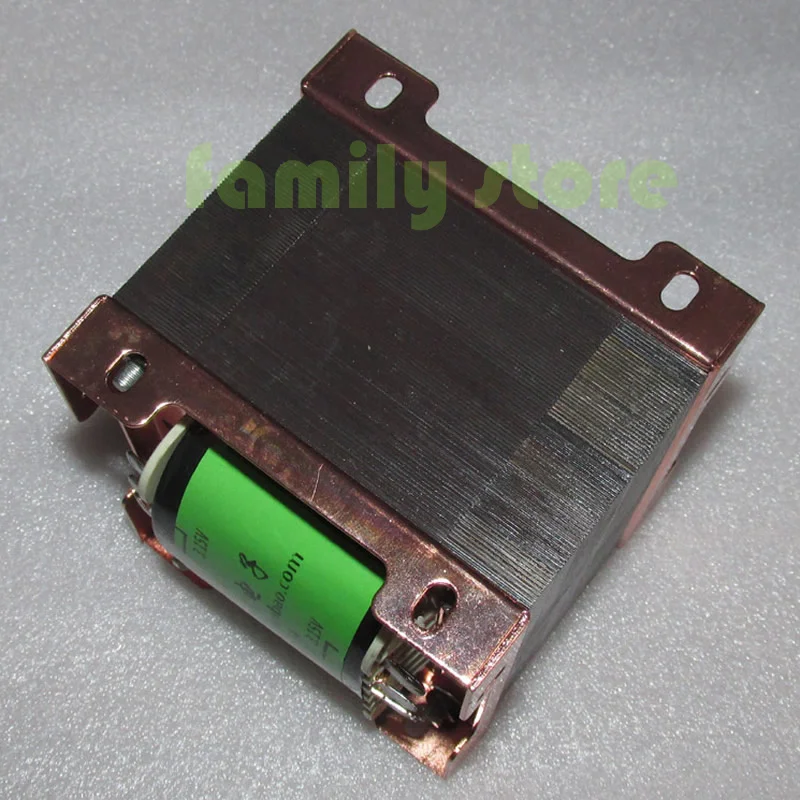

Red Bull Clip Fixed Transformer,
L angle iron fixed transformer,
The lead wire has a single side and two sides. If you have a request, please leave a message.
