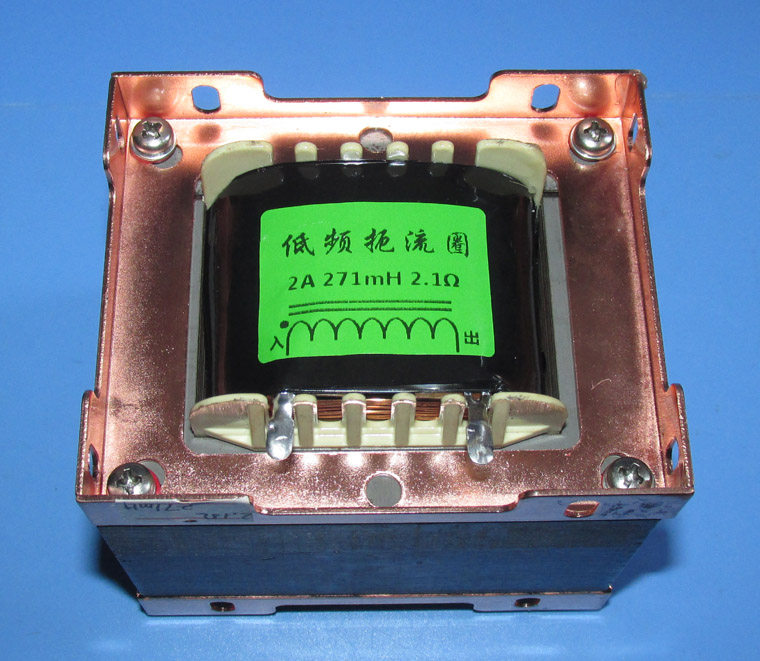

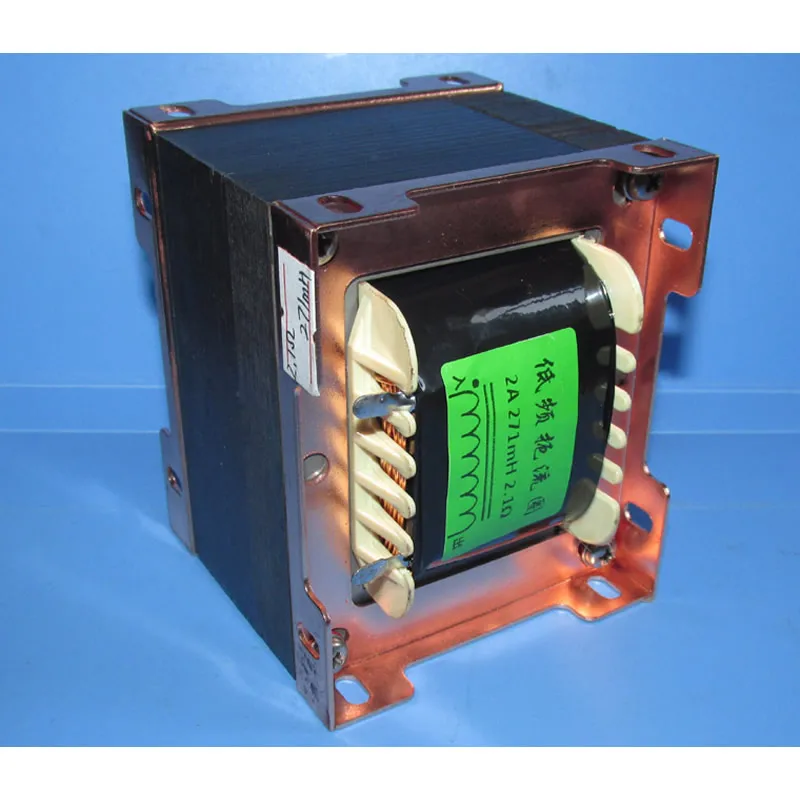

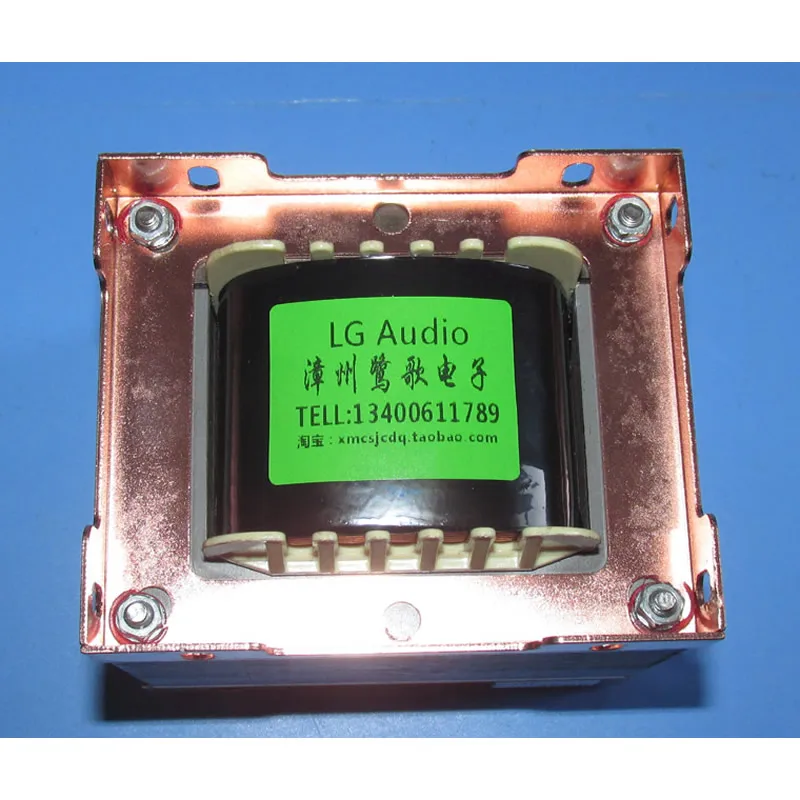

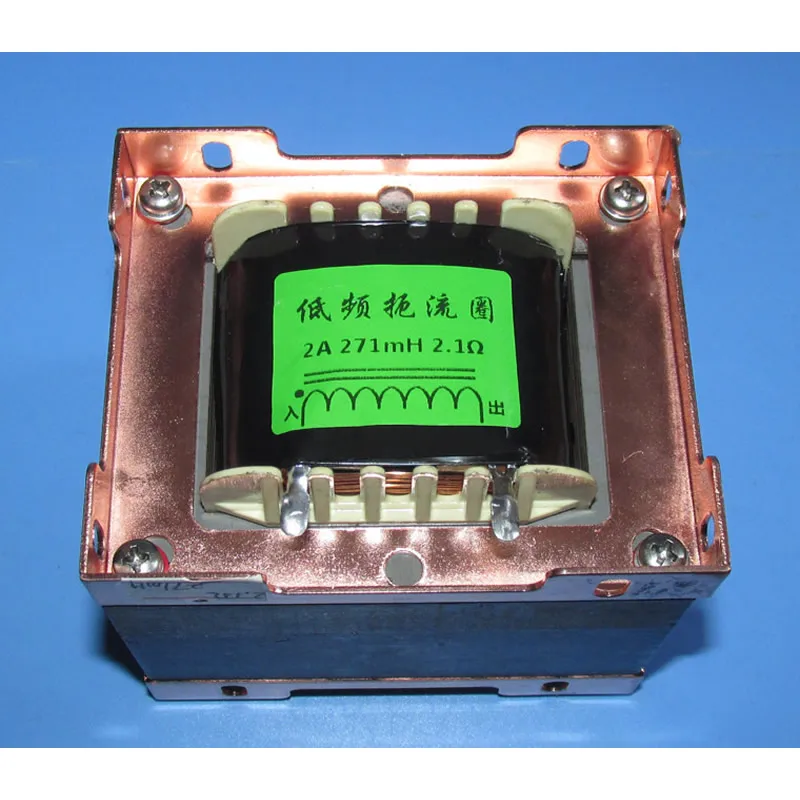

270mH, 2A, 2.1 Euro 6C33 / 833 and other single-end push-pull choke choke, EI96X50mm iron core, British Red Bull bracket, red-plated copper iron frame, fixed frame iron frame, horizontal and easy to fix.
Production of Z11 pieces, 96 pieces × 50mm, thickness of 0.35mm, and stack thickness of 50mm. Oxygen-free copper copper enameled wire, vacuum impregnated varnish, to ensure that the insulation paint penetrates into each circle of enameled wire, to protect the wire cover and iron core. The choke weighs about 3.16KG. 1000V DC voltage without breakdown for 1 minute. Warranty for three years.
This choke has an internal resistance of only 2.1 ohms, which is perfectly suitable for transistor power amplifier power filtering.
Note: Inductance and resistance will be different due to different testing conditions and equipment. The inductance and resistance values measured in different production batches are slightly different, and there is some dispersion. The parameters provided above are for reference only!
