Frequency characteristics: low frequency
Core shape: EI type
Core material: domestic H50 annealing sheet 0.5MM thick

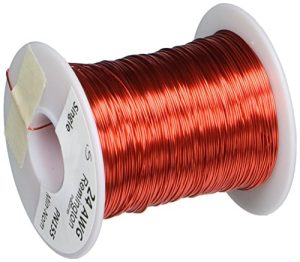

Coil material: QZ-2 pure copper enameled wire, more resistant to high temperature and wear than QA wire
Skeleton shape: I-shaped
Moisture-proof method: dipping paint, open type
Cooling method: natural cooling
Magnetic gap: 0.1MM

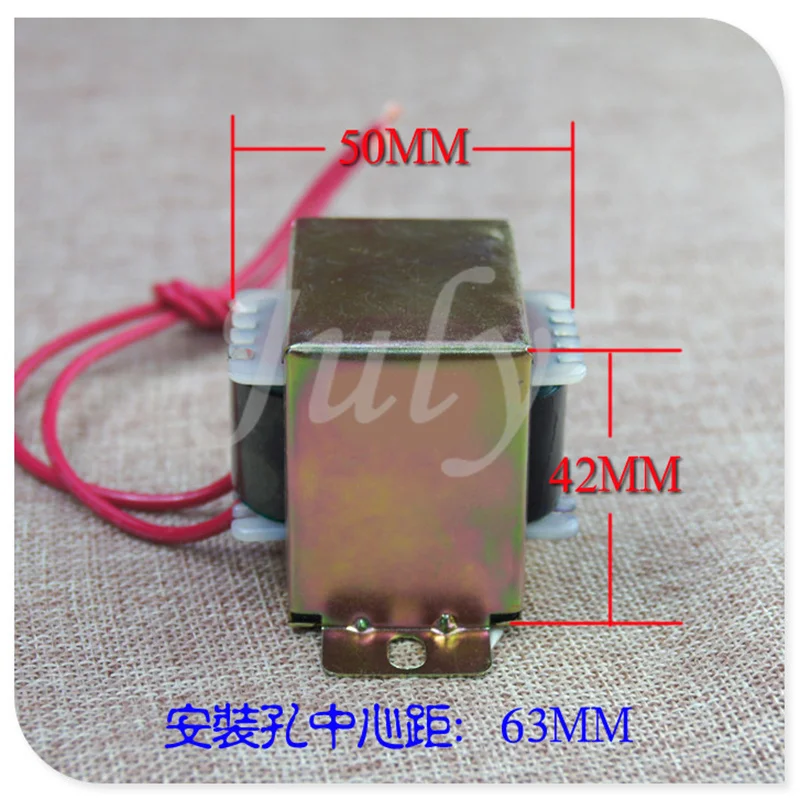

Dimensions: see picture annotation
Center pitch of mounting hole: 63mm
Net weight: 0.46kg
Inductance: 10H
Measuring instrument: LC200A handheld inductance and capacitance meter, the general multimeter with inductance function has a relatively large measurement error, do not agree with our measuring instrument.
DC resistance: about 200Ω
Shell color: color zinc plated
