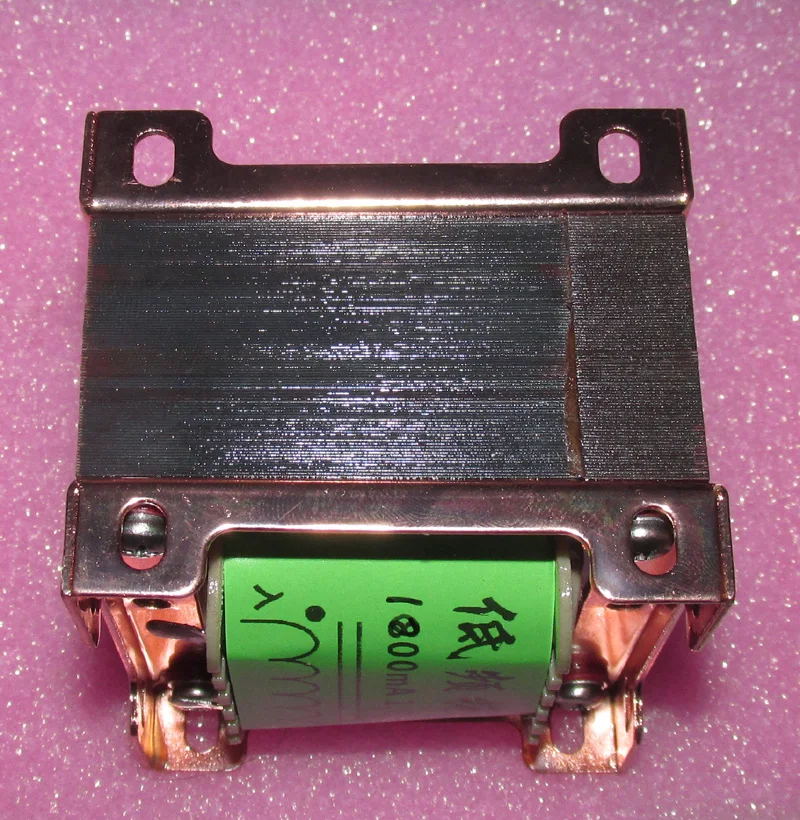

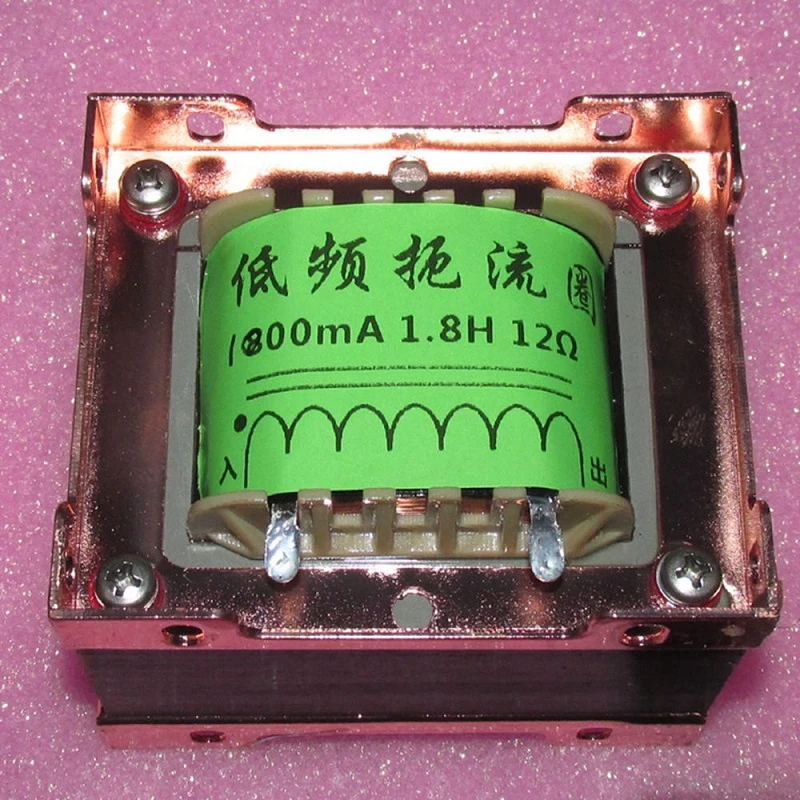

1.8H 1A 12Ω transistor choke/power amplifier choke EI865X33mm Z11 iron core, British Red Bull stand, red copper plated iron frame, fixed frame iron frame, fixed horizontally and conveniently.
Z11 film production, 86 film × 35mm, film thickness 0.35mm, stack thickness 35mm. Oxygen-free copper and copper enameled wire, vacuum impregnated paint, to ensure that the insulating paint penetrates into each circle of enameled wire, protect the wire pack and iron core The choke weighs about 1.72KG. There is no breakdown at 1000V DC for 1 minute.
This choke is also suitable for transistor line power filtering.
